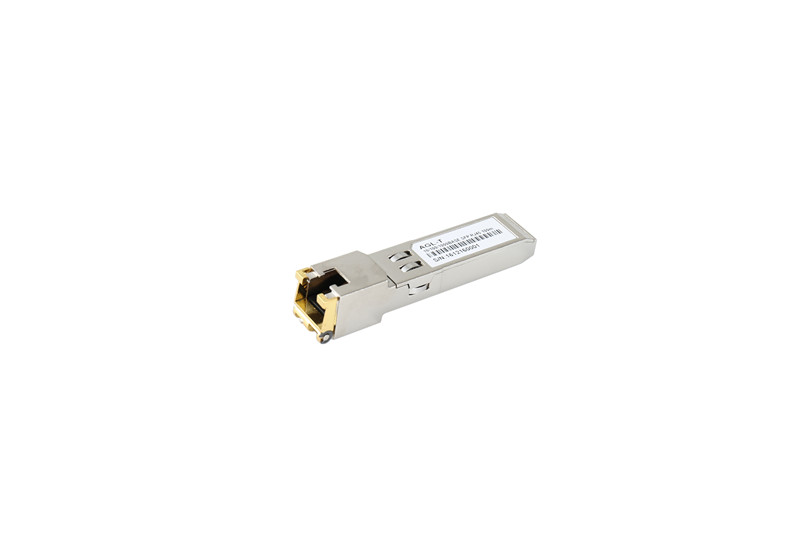

AGL-T 10/100/1000 BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the Gigabit Ethernet standards as specified in IEEE Std 802.3 .The 10/100/1000 BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.

The AGL-T is compatible with 1000BASE-X auto-negotiation, but does not have a link indication feature (RX_LOS is internally grounded).

l Up to 1.25 Gb/s bi-directional data links

l Hot-pluggable SFP footprint

l Low power dissipation(1.05W typical)

l Compact RJ-45 connector assembly

l Fully metal enclosure, for lower EMI

l RoHS compliant and lead-free

l Single +3.3V power supply

l 10/100/1000 BASE-T operation in host systems with SGMII interface

l 1.25 Gigabit Ethernet over Cat 5 cable

l Case operating temperature：

       Commercial: 0°C to +70°C

       Extended: -10°C to +80°C

       Industrial: -40°C to +85°C

Model No.	SPEC	Wavelength	Emitter	Temperature	Port	Unit	Compatibility
GE SFP
AGL-SX-MM850	1.25G,Multi-mode Dual Fibers, DDM,0.5KM	850nm	VCSEL	0～70	LC	PCS	cisco H3C Optional
AGL-LX-SM1310-20	1.25G,Single-mode Dual Fiber,DDM,10-20KM	1310nm	FP	0～70	LC	PCS	cisco H3C Optional

AGL-T	10/100/1000M RJ45 port, DDM,100m	N/A	N/A	0～85	RJ45	PCS	cisco H3C Optional

GE BIDI SFP
AGL-BX-D1550-3	1.25G,Single mode Single fiber,DDM,3KM	Tx1550nm/Rx1310nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-U1310-3	1.25G,Single mode Single fiber,DDM,3KM	Tx1310nm/Rx1550nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-D1550-10	1.25G,Single mode Single fiber,DDM,10KM	Tx1550nm/Rx1310nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-D1550-10	1.25G,Single mode Single fiber,DDM,10KM	Tx1550nm/Rx1310nm	FP	0～70	LC
AGL-BX-U1310-10	1.25G,Single mode Dual fiber,DDM, 10KM	Tx1310nm/Rx1550nm	FP	0～70	LC		cisco H3C Optional
AGL-BX-D1490-20	1.25G,Single mode Single fiber,DDM, 20KM	TX1490/RX1310nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-U1310-20	1.25G,Single mode Single fiber, DDM,20KM	TX1310/RX1490nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-D1550-40	1.25G,Single mode Single fiber,DDM, 40KM	Tx1550nm/Rx1310nm	DFB	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-U1310-40	1.25G,Single mode Single fiber,DDM, 40KM	Tx1310nm/Rx1550nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-D1490-40	1.25G,Single mode Single fiber,DDM, 40KM	Tx1490nm/Rx1310nm	DFB	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-U1310-40	1.25G,Single mode Single fiber,DDM,40KM	TX1310nm/Rx1490nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-D1490-80	1.25G,Single mode Single fiber,DDM, 80KM	Tx1490nm/Rx1310nm	DFB	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-U1310-80	1.25G,Single mode Single fiber,DDM,80KM	TX1310nm/Rx1490nm	FP	0～70	LC	PAIR	cisco H3C Optional
