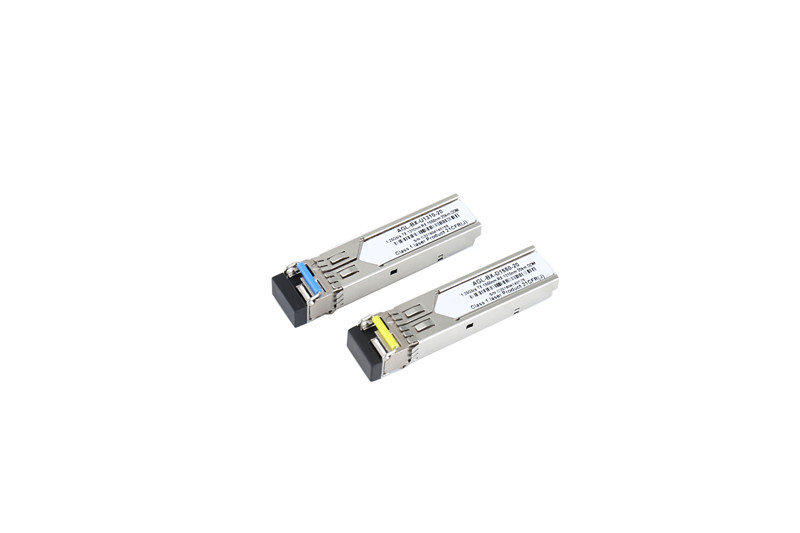

Transceiver is compliant with SFP MSA.It is high performance,low cost,that supports operating data-rate up to 1250Mbps.
The transmitter section and receiver section work independently in the transceiver.The receiver section contains an InGaAs Pin photodiode,a transmipedance amplifier and a post amplifier (with working data rate up to 1250Mbps ),functionally transmit received optical power to steady electircal data. The transmitter section contains an 1310nm FP laser diode with back-face monitor and a laser driver with APC function ,transmit input electrical data to steady optical output signal.

The product is compliant with the SFP MSA such as the LC optical interface receptacle ,3.3V supply voltage,TTL signal detect logic .

1310nm or 1550nm emission wavelength
InGaAs photodiode pin receiver

Operation data up to 1250Mbps

Compliant with SFP MSA and SFF-8472

Double LC receptable

Single 3.3V power supply

Differential LVPECL input /output

TTL Signal detect function

Digital diagnostic monitor function

(1310nm FP and PIN, 15km)
Transmit optical ,electircal characteristics
Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Input Differentral Impedance	Rin		100		Ω
Transmit Differential Input Voltage	VinPP	300		1600	mV
Transmit disable input high voltage		2.0			V
Transmit disable input low voltage				0.8	V
Transmit fault input high voltage		2.0			V
Transmit fault input low voltage				0.8	V
Transmit disable assert time			0.14	5	us
Launch optical power	Po	-9.5		-3	dBm
Extinction ratio	ER	8.2			dB
Central wavelength	l		1310		nm
Output spectrum width	Dl			4	nm

Receive electircal ,optical characteristics
parameter	symbol	min	tipical	max	unit	note
Receiver differential output signal	VoutPP	400		1600	mV
Receiver loss of signal Voltage high		2			nm
Receiver loss of singla voltage low				0.8	dBm
Receiver sensitivity	Sen			-21	dBm
Maximum input power	PinMAX	-8			dBm	-
Signal detect range		-40		-22	dBm	-
Singal detect hysteresis		0.5			dB	-

(1550nm DFB and PIN,15km)
Transmit optical ,electircal characteristics
Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Input Differentral Impedance	Rin		100		Ω
Transmit Differential Input Voltage	VinPP	300		1600	mV
Transmit disable input high voltage		2.0			V
Transmit disable input low voltage				0.8	V
Transmit fault input high voltage		2.0			V
Transmit fault input low voltage				0.8	V
Transmit disable assert time			0.14	5	us
Launch optical power	Po	-9.5		-3	dBm
Extinction ratio	ER	8.2			dB
Central wavelength	l		1310		nm
Output spectrum width	Dl			4	nm

Receive electircal ,optical characteristics
parameter	symbol	min	tipical	max	unit	note
Receiver differential output signal	VoutPP	400		1600	mV
Receiver loss of signal Voltage high		2			nm
Receiver loss of singla voltage low				0.8	dBm
Receiver sensitivity	Sen			-21	dBm
Maximum input power	PinMAX	-8			dBm	-
Signal detect range		-40		-22	dBm	-
Singal detect hysteresis		0.5			dB	-

Model No.	SPEC	Wavelength	Emitter	Temperature	Port	Unit	Compatibility
GE SFP
AGL-SX-MM850	1.25G,Multi-mode Dual Fibers, DDM,0.5KM	850nm	VCSEL	0～70	LC	PCS	cisco H3C Optional
AGL-LX-SM1310-20	1.25G,Single-mode Dual Fiber,DDM,10-20KM	1310nm	FP	0～70	LC	PCS	cisco H3C Optional

AGL-T	10/100/1000M RJ45 port, DDM,100m	N/A	N/A	0～85	RJ45	PCS	cisco H3C Optional

GE BIDI SFP
AGL-BX-D1550-3	1.25G,Single mode Single fiber,DDM,3KM	Tx1550nm/Rx1310nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-U1310-3	1.25G,Single mode Single fiber,DDM,3KM	Tx1310nm/Rx1550nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-D1550-10	1.25G,Single mode Single fiber,DDM,10KM	Tx1550nm/Rx1310nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-D1550-10	1.25G,Single mode Single fiber,DDM,10KM	Tx1550nm/Rx1310nm	FP	0～70	LC
AGL-BX-U1310-10	1.25G,Single mode Dual fiber,DDM, 10KM	Tx1310nm/Rx1550nm	FP	0～70	LC		cisco H3C Optional
AGL-BX-D1490-20	1.25G,Single mode Single fiber,DDM, 20KM	TX1490/RX1310nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-U1310-20	1.25G,Single mode Single fiber, DDM,20KM	TX1310/RX1490nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-D1550-40	1.25G,Single mode Single fiber,DDM, 40KM	Tx1550nm/Rx1310nm	DFB	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-U1310-40	1.25G,Single mode Single fiber,DDM, 40KM	Tx1310nm/Rx1550nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-D1490-40	1.25G,Single mode Single fiber,DDM, 40KM	Tx1490nm/Rx1310nm	DFB	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-U1310-40	1.25G,Single mode Single fiber,DDM,40KM	TX1310nm/Rx1490nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-D1490-80	1.25G,Single mode Single fiber,DDM, 80KM	Tx1490nm/Rx1310nm	DFB	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-U1310-80	1.25G,Single mode Single fiber,DDM,80KM	TX1310nm/Rx1490nm	FP	0～70	LC	PAIR	cisco H3C Optional
