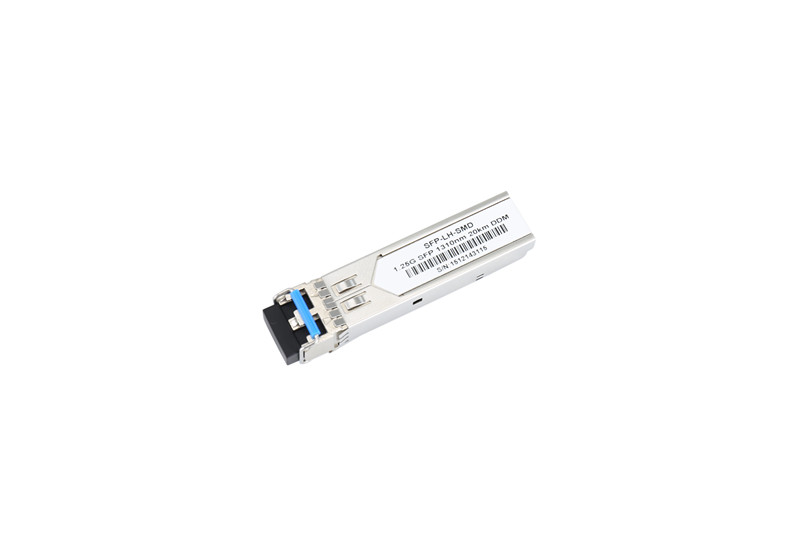

AGL-LX-SM1310-20 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the FP laser and the PIN photo-detector .The module data link up to 10km in 9/125um single mode fiber.

The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

l Up to 1.25Gb/s data links

l FP laser transmitter and PIN photo-detector

l Up to 20km on 9/125µm SMF

l Hot-pluggable SFP footprint

l Duplex LC/UPC type pluggable optical interface

l Low power dissipation

l Metal enclosure, for lower EMI

l RoHS compliant and lead-free

l Support Digital Diagnostic Monitoring interface

l Single +3.3V power supply

l Compliant with SFF-8472

l Case operating temperature

       Commercial: 0°C to +70°C

       Extended: -10°C to +80°C

       Industrial: -40°C to +85°C

APPLICATIONS

l Switch to Switch Interface

l Gigabit Ethernet

l Switched Backplane Applications

l Router/Server Interface

l Other Optical Links

Model No.	SPEC	Wavelength	Emitter	Temperature	Port	Unit	Compatibility
GE SFP
AGL-SX-MM850	1.25G,Multi-mode Dual Fibers, DDM,0.5KM	850nm	VCSEL	0～70	LC	PCS	cisco H3C Optional
AGL-LX-SM1310-20	1.25G,Single-mode Dual Fiber,DDM,10-20KM	1310nm	FP	0～70	LC	PCS	cisco H3C Optional

AGL-T	10/100/1000M RJ45 port, DDM,100m	N/A	N/A	0～85	RJ45	PCS	cisco H3C Optional

GE BIDI SFP
AGL-BX-D1550-3	1.25G,Single mode Single fiber,DDM,3KM	Tx1550nm/Rx1310nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-U1310-3	1.25G,Single mode Single fiber,DDM,3KM	Tx1310nm/Rx1550nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-D1550-10	1.25G,Single mode Single fiber,DDM,10KM	Tx1550nm/Rx1310nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-D1550-10	1.25G,Single mode Single fiber,DDM,10KM	Tx1550nm/Rx1310nm	FP	0～70	LC
AGL-BX-U1310-10	1.25G,Single mode Dual fiber,DDM, 10KM	Tx1310nm/Rx1550nm	FP	0～70	LC		cisco H3C Optional
AGL-BX-D1490-20	1.25G,Single mode Single fiber,DDM, 20KM	TX1490/RX1310nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-U1310-20	1.25G,Single mode Single fiber, DDM,20KM	TX1310/RX1490nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-D1550-40	1.25G,Single mode Single fiber,DDM, 40KM	Tx1550nm/Rx1310nm	DFB	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-U1310-40	1.25G,Single mode Single fiber,DDM, 40KM	Tx1310nm/Rx1550nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-D1490-40	1.25G,Single mode Single fiber,DDM, 40KM	Tx1490nm/Rx1310nm	DFB	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-U1310-40	1.25G,Single mode Single fiber,DDM,40KM	TX1310nm/Rx1490nm	FP	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-D1490-80	1.25G,Single mode Single fiber,DDM, 80KM	Tx1490nm/Rx1310nm	DFB	0～70	LC	PAIR	cisco H3C Optional
AGL-BX-U1310-80	1.25G,Single mode Single fiber,DDM,80KM	TX1310nm/Rx1490nm	FP	0～70	LC	PAIR	cisco H3C Optional
