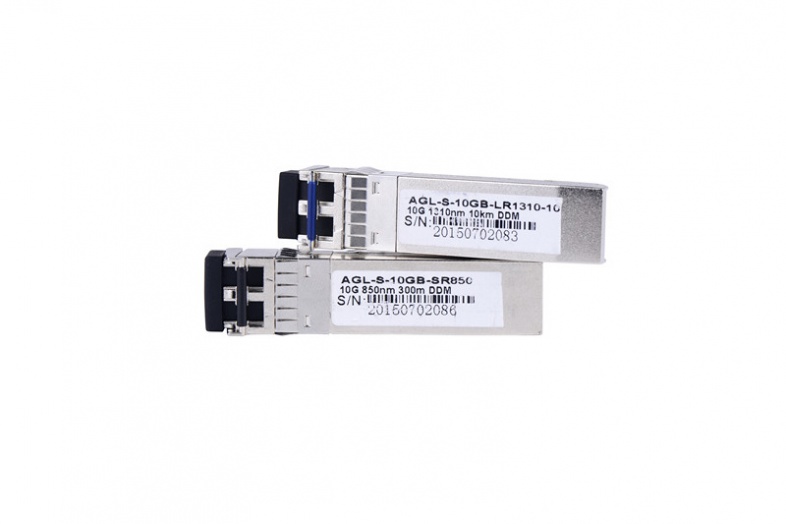

AGL-X-10GB-LR1310-10 optical transceivers are designed for 10Gb/s serial optical interfaces for data communications with single mode fiber (SMF). The transceiver can support 9.953- 11.1Gb/s
The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for datacom

Features:
Hot pluggable
10Gb/s serial optical interface
Up to 10km distance
Compliant with SFP+ MSA
SFP MSA package with duplex LC connector
Digital Diagnostic Monitor Interface
Very low EMI and excellent ESD protection
High transmission margin
+3.3V single power supply
Below 1.5W power consumption
SFP mechanical interface
Wide data-rate range
Standards:

SFP+ MSA Compliant
SFF-8472 reversion 9.5 compliant
IEEE802.3-2005 compliant
Telcordia GR-468-CORE compliant
FCC 47 CFR Part 15,Class B compliant
FDA 21 CFR 1040.10 and 1040.11,
class1 compliant
RoHS compliant

Transmitter (0~70℃@10.3125Gb/s)

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Operating wavelength		1290	1310	1330	nm
Ave. output power (Enabled)	Po	-6		0	dBm	Note 1
Extinction Ratio	ER	3.5	5.0		dB	Note 1
Spectral width	Δλ			1	nm
Rise/Fall time (20%~80%)	Tr/Tf			50	PS	Note 2
Optical modulation amplitude	OMA	-5.2			dBm
Dispersion penalty				1	dB
Output Optical Eye	IEEE 802.3-2005 Compliant

Model No.	SPEC	Wavelength	Emitter	Temperature	Port	Unit	Compatibility
10GE SFP
AGL-S-10GB-SR850	10G,Multi mode Dual fiber, DDM,300m	850nm	VCSEL	0～70	LC	PCS	cisco H3C Optional
AGL-S-10GB-LR1310-10	10G,Single mode,Daul fiber,DDM,20KM	1310nm	DFB	0～70	LC	PCS	cisco H3C Optional
AGL-S-10GB-ER1550-40	10G,Single mode,Duaul fiber,DDM, 40KM	1550nm	DFB	0～70	LC	PCS	cisco H3C Optional

10GE BIDI SFP
AGL-S-10G-DR23-20	10G Single mode Single fiber,DDM, 20KM SFP+	Tx1270nm/Rx1330nm	DFB	0～70	LC	PCS	cisco H3C Optional
AGL-S-10G-UR32-20	10G Single mode Single fiber,DDM,20KM SFP+	Tx1330nm/Rx1270nm	DFB	0～70	LC	PCS	cisco H3C Optional
AGL-S-10G-DR23-40	10G Single mode Single fiber,DDM,40KM SFP+	Tx1270nm/Rx1330nm	DFB	0～70	LC	PCS	cisco H3C Optional
AGL-S-10G-UR32-40	10G Single mode Single fiber,DDM,40KM SFP+	Tx1330nm/Rx131270nm	DFB	0～70	LC	PCS	cisco H3C Optional
AGL-S-10G-DR23-60	10G Single mode Single fiber,DDM,60KM SFP+	Tx1270nm/Rx1330nm	DFB	0～70	LC	PCS	cisco H3C Optional
AGL-S-10G-UR32-60	10G Single mode Single fiber,DDM,60KM SFP+	Tx1330nm/Rx131270nm	DFB	0～70	LC	PCS	cisco H3C Optional
AGL-S-10G-DR23-80	10G Single mode Single fiber,DDM,60KM SFP+	Tx1270nm/Rx1330nm	DFB	0～70	LC	PCS	cisco H3C Optional
AGL-S-10G-UR32-80	10G Single mode Single fiber,DDM,60KM SFP+	Tx1330nm/Rx131270nm	DFB	0～70	LC	PCS	cisco H3C Optional
