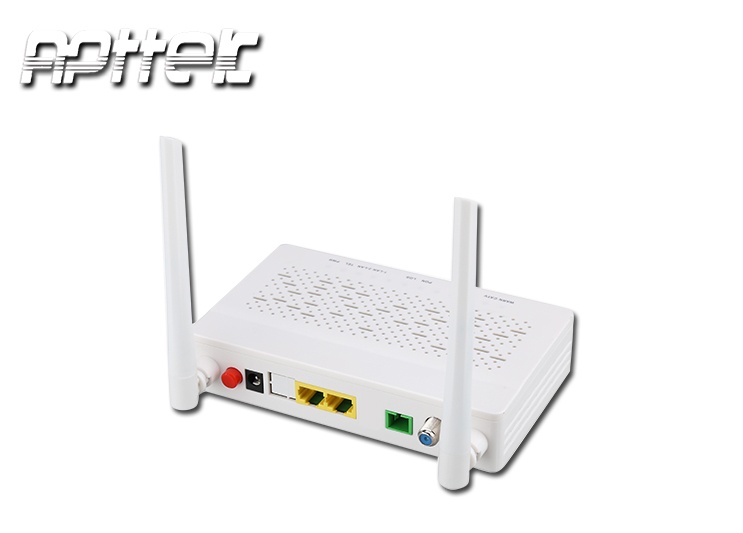

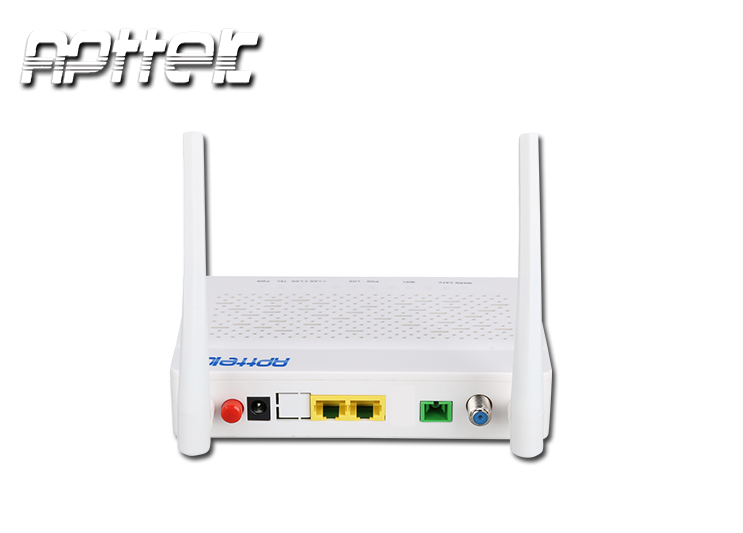

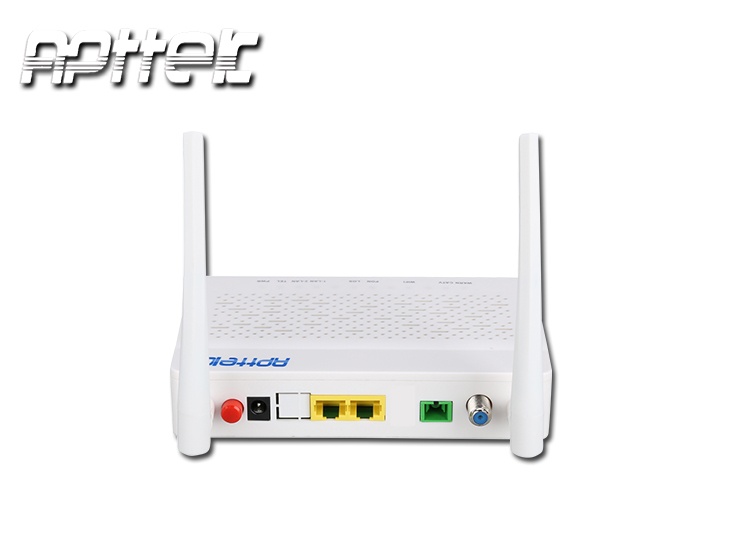

XPON 1G 1F 2.4Ghz WiFi CATV ONU modem from direct factory

AP3212GDE is the terminal equipment of a series of XPON which complies fully with ITU-G.984.1/2/3/4 standard and meet the energy-saving of G.987.3 protocol. It is based on mature and stable and high cost-effective XPON technology which adopts high-performance XPON ZTE chipset and has high reliability, easy management, flexible configuration, robustness, good quality service guarantee(Qos). AP3212GDE adopts MTK MT7603EN scheme for WIFI application that supports IEEE802.11b/g/n standard. It also provides the WEB management page and simplifies the configuration of WIFI.
AP3212GDE supports 1 RF port for CATV, which can be switched off on OLT terminal. AP3212GDE has the automatic function of EPON and GPON, which is realized by the Pure software.

△ Auto-negotiation(When the onu works, it will automatically identify EPON and GPON mode according to the access optical signal, otherwise it automatically defaults to GPON mode)

catv onu price, onu catv gpon, vsol onu catv, onu catv wifi, huawei onu catv, gpon onu 1ge+1fe+wifi+catv, catv wifi onu, 1ge+1fe+catv+wifi onu

EPON Mode

•Comply fully with IEEE802.3ah standard and CTC EPON device technology requirement •Support bidirectional FEC
•Support downlink triple churning
•Support AES128 decryption function
•ONU discovery and registration process implemented by Pure hardware
•Support the report of the CTC requirement
•Support Dying-Gasp check and report
•Support OAM remote management
•Support VLAN function
•Operation mode:SFU or HGU option
•Support TR069,NAT,DMZ,DNS features
•Support Bridge,PPPoE,DHCP and Static IP configuration for WAN interface
•Support IP,MAC Filtering,Firewall Functionality in routed mode
•Good interworking with the OLT from different manufacturers,such as Broadcom,ZTE,HUAWEI, etc.

GPON Mode

•Comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol
•Support bidirectional FEC and RS(255,239) FEC CODEC
•Support 16+1 TCONT and 32+1 GEMPORT
•Support AES128 decryption function of G.984 standard
•Support SBA and DBA dynamically broadband allocation
•Support the PLOAM function of G.984 standard
•Support Dying-Gasp check and report
•Support synchronous Ethernet
•Support the rogue ONU alarm function
•Support multiple VLAN function
•Operation mode:SFU or HGU option
•Support TR069,NAT,DMZ,DNS features
•Support Bridge,PPPoE,DHCP and Static IP configuration for WAN interface
•Support IP,MAC Filtering,Firewall Functionality in routed mode
•Good interworking with the OLT from different manufacturers,such as HUAWEI,ZTE,Broadcom,etc.

Tech parameters		Description
Up-link interface	EPON Mode	1 EPON interface，SC single mode single fiber
		1 Gbits/s rate which uplink and downlink are symmetrical
		Fiber type：SC/PC
		TX Optical power：-1 士 4 dBm
		RX Sensitivity：-26 dBm
		safety: ONU authentication mechanism
	GPON Mode	1 GPON interface，SC single mode single fiber
		RX 2.488 Gbits/s rate and TX 1.244 Gbits/s rate
		Fiber type：SC/PC
		TX Optical power：0~4 dBm
		RX Sensitivity：-28 dBm
		safety: ONU authentication mechanism
Wavelength(nm)		TX 1310nm，RX 1490nm
Fiber connector		SC/PC,SC/UPC,SC/APC
Down-link data interface		110/100Mbps and 110/100/1000M auto-negotiation Ethernet interface, RJ45 interface
DC supply interface		input＋12V 1A，footprint：DC0005 ø2.1MM
Power		≤5W
Operating temperature		-5～+55℃
Humidity		10～85%（non-condensation)
Storage temperature		-30～+70℃
Dimension（MM）		18512532mm（mainframe）
Weight		0.5Kg（mainframe）

WiFi Characteristics
WIFI	2.4G
Standard	IEEE802.11b/g/n
Frequency	2.4~2.4835GHz
Transmission speed	IEEE 802.11b :max11Mbps IEEE 802.11g: max54Mbps IEEE 802.11n:max 300Mbps
Channel number	2.4GHz :13
Data Modulation	DSSS,BPSK,CCK QPSK, and 16-QAM/64-QAM
Multiple encryption methods	WFA,WPA,WPA2,WAPI
Antenna	2T2R Mode, external antennas 5DBI Gain per pcs MIMO: 2*2
WPS function	Support

Tech features	Description
Optical wavelength	1540-1560nm（Single fiber, internal PWDM component）
Optical input range	0~ -15dBm
Optical return loss	≥45DB
Bandwidth	40MHz-1000MHz
Flatness	±1.5DB
RF output level	The default:75±5dBuV@155MHZ
AGC control	Regulation accuracy：±1DB
RF Output return loss	≥14DB
RF output impedance	75Ω
MER	＞33 DB @251MHZ
CNR	≥43 DB
CTB	≥54 DB
CSO	≥54DB

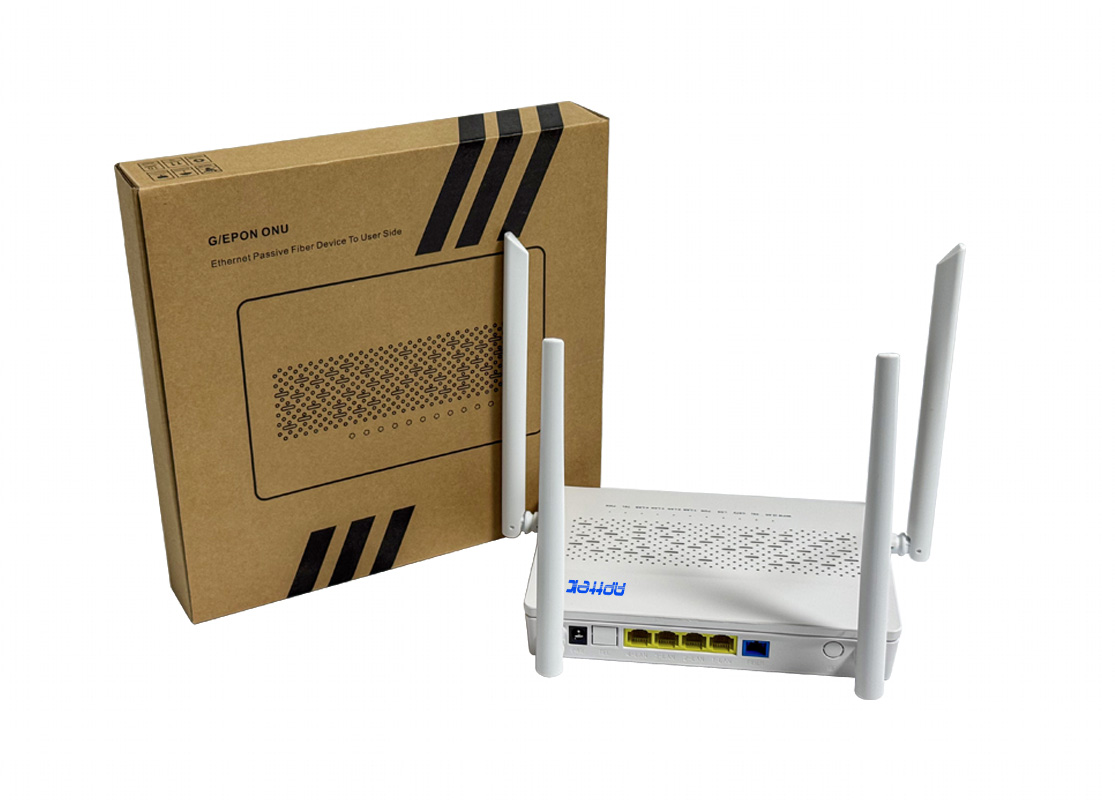

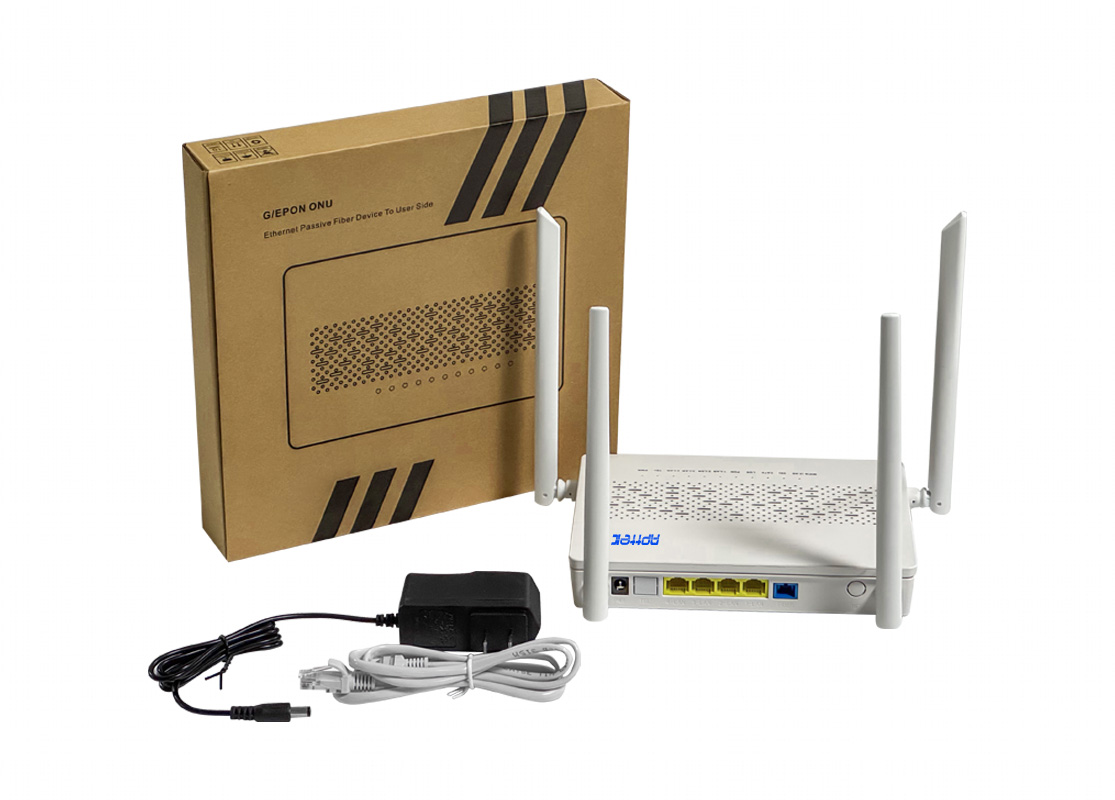

Package Type:

ONU *1
Manual *1
Charger * 1
RJ45 cable * 1
Warranty card *1
All this in a carton case
