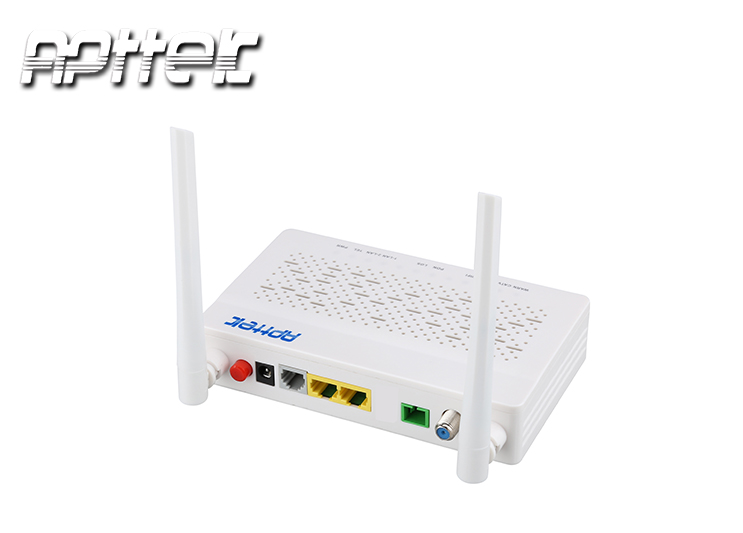

OEM fibra low price 2 ports 2.4ghz wifi 5dBi SIP CATV ftth gpon onu with tel and rf output

AP32123GDE is the terminal equipment of a series of XPON which complies fully with ITU-G.984.1/2/3/4 standard and meet the energy-saving of G.987.3 protocol. It is based on mature and stable and high cost-effective XPON technology which adopts high-performance XPON ZTE chipset and has high reliability, easy management, flexible configuration, robustness, good quality service guarantee(Qos).
AP32123GDE adopts MTK MT7603EN scheme for WIFI application that supports IEEE802.11b/g/n standard. It also provides the WEB management page and simplifies the configuration of WIFI.
AP32123GDE has the automatic function of EPON and GPON, which is realized by the Pure software.

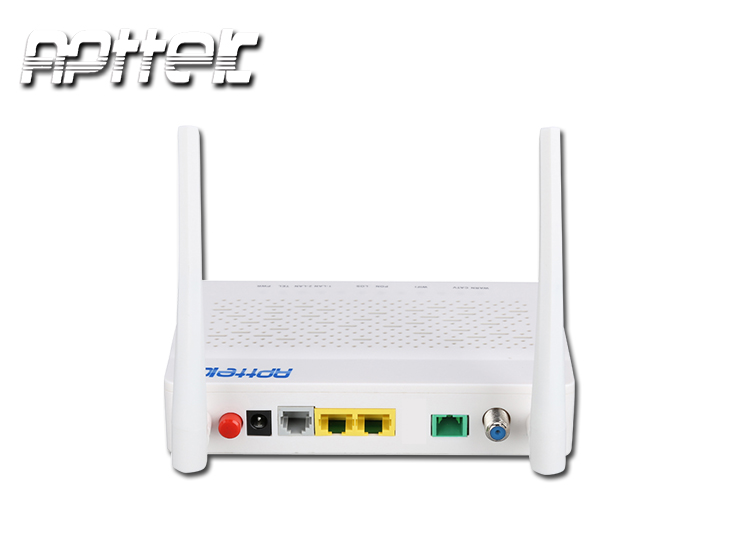

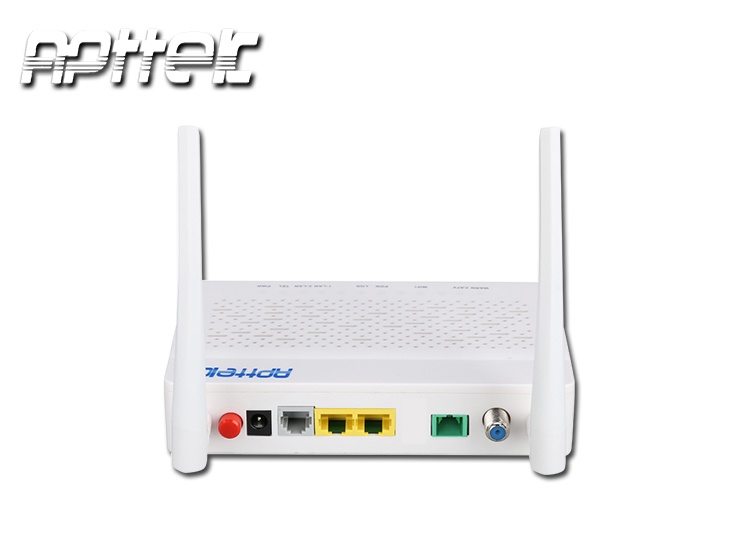

AP32123GDE supports one RF port for signal CATV and one RJ11 port for VOIP.

Datasheet

Tech parameters	Description
Up-link interface	PON quantity	1PC XPON PON
	PON interface receiving rate	1.25/2.488Gbits/s(Auto-negotiation)
	PON interface transmitting rate	1.25/1.244Gbits/s(Auto-negotiation)
	TX Optical power	0-4dBm
	RX Sensitivity	-28dBm
	Safety	ONU authentication mechanism
Down-link interface	Fiber type	Single mode single fiber,20km
	Wavelength(nm)	TX 1310nm, RX 1490nm
	Fiber port	SC/PC,SC/UPC,SC/APC
	Ethernet port	1PC10/100/1000M with auto-negotiation 1PC10/100M with auto-negotiation
Power supply	12V 1 A
Power	≤5W
Operating temperature	-5~55℃
Humidity	10～85%（non-condensation）
Storage temperature	-30~70℃

ONU WiFi Features

Tech features	Description
Antenna	2T2R Mode gain:5dBi
Rate	IEEE802.11b/g/n: 300Mbps Channel number:13 for wifi4
Encryption methods	WFA、WPA、WPA2、WAPI
Tx power	17dBm for 2.4GHz
Rx sensitivity	WIFI4：-59dBm @ channel 11 MCS7;
WPS function	Support

ONU Telephone Features

Tech features	Description
Voltage and Current Monitoring	The ONU continuously monitors the TIP, RING, and battery voltages and currents via an on-chip Monitor ADC
Power Monitoring and Power Fault Detection	The ONU monitoring functions are used to continuously protect against excessive power conditions
Thermal Overload Shutdown	If the working temperature exceeds the maximumjunction temperature threshold, thedevice will shutitself down
Default configuration	Protocol: SIP; Code type selection:G722,G729,,G711A,G711U FAX: disable

ONU CATV Features

Tech features	Description
Optical wavelength	1540-1560nm（Single fiber, internal PWDM component）
Optical input range	0~ -15dBm
Optical return loss	≥45DB
Bandwidth	40MHz-1000MHz
Flatness	±1.5DB
RF output level	The default:75±5dBuV@155MHZ
AGC control	Regulation accuracy：±1DB
RF Output return loss	≥14DB
RF output impedance	75Ω
MER	＞33DB @251MHZ
CNR	≥43DB
CTB	≥54 DB
CSO	≥54DB

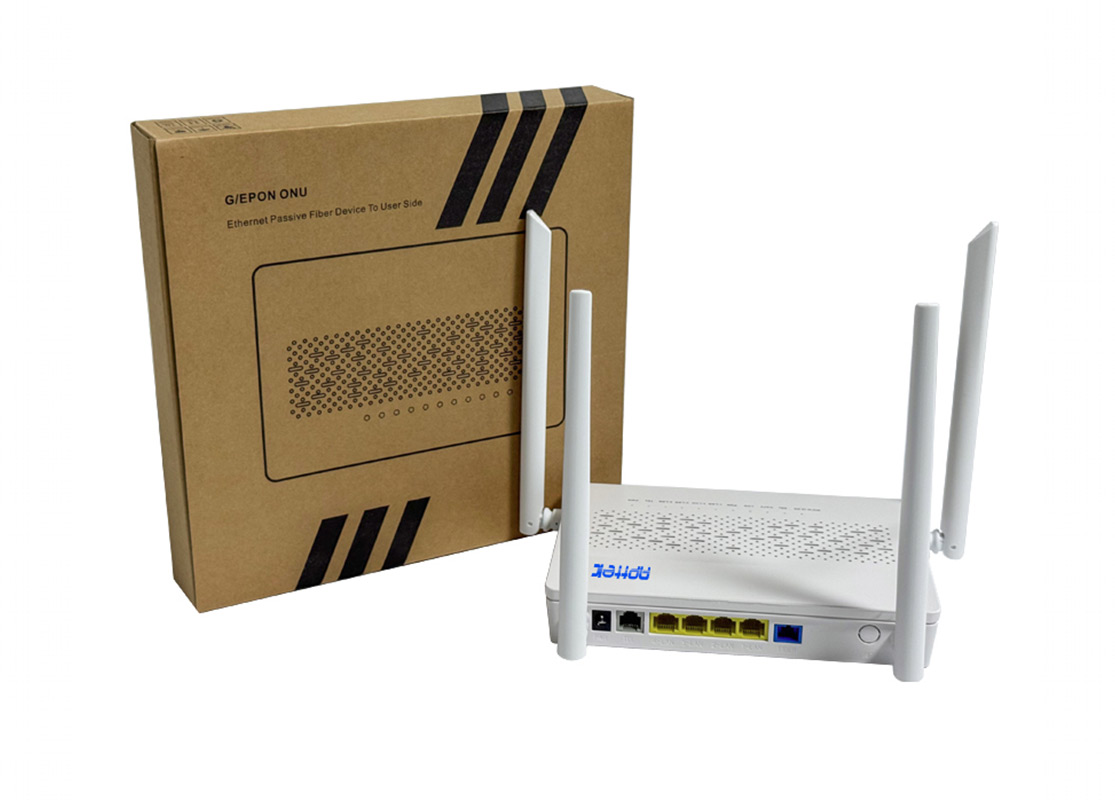

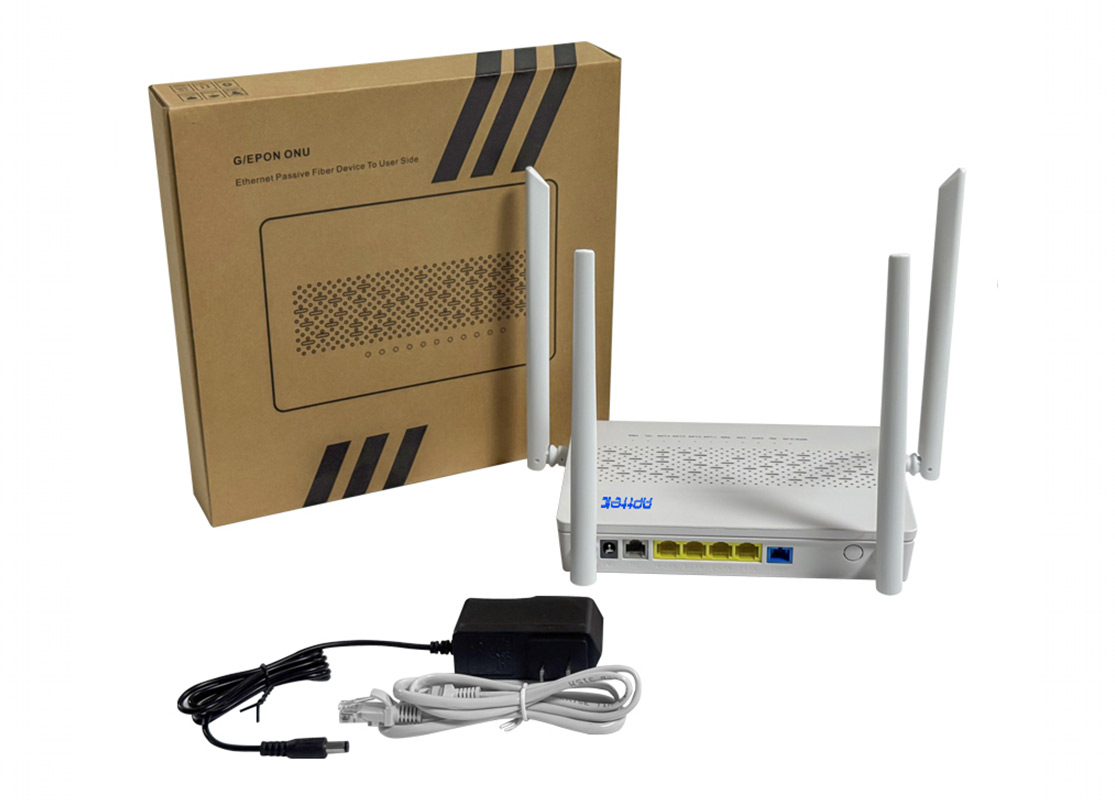

Package Type:

ONU *1
Manual *1
Charger * 1
RJ45 cable * 1
Warranty card *1
All this in a carton case

Send inquiry to apt-7990@apttek.com.cn

Services support：
OEM ODM for MOQ 500 pieces;
Technical support all lifespan;
Free sample for old customers.
