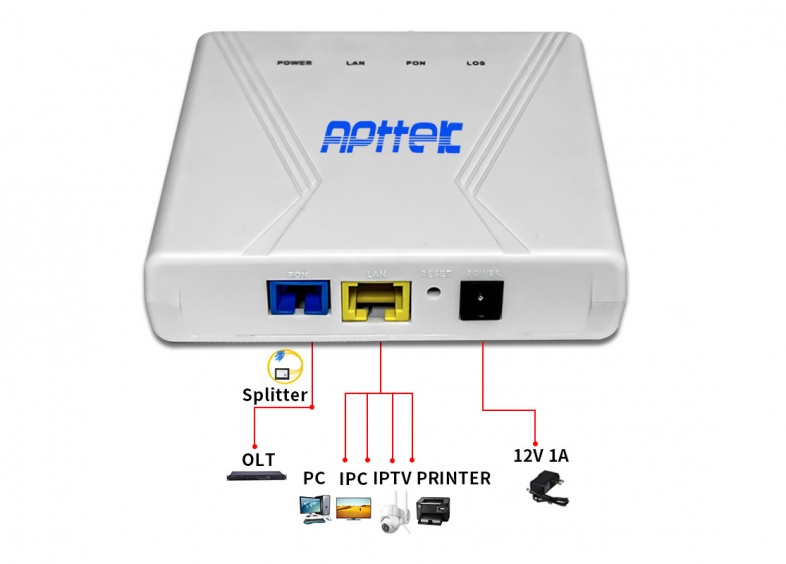

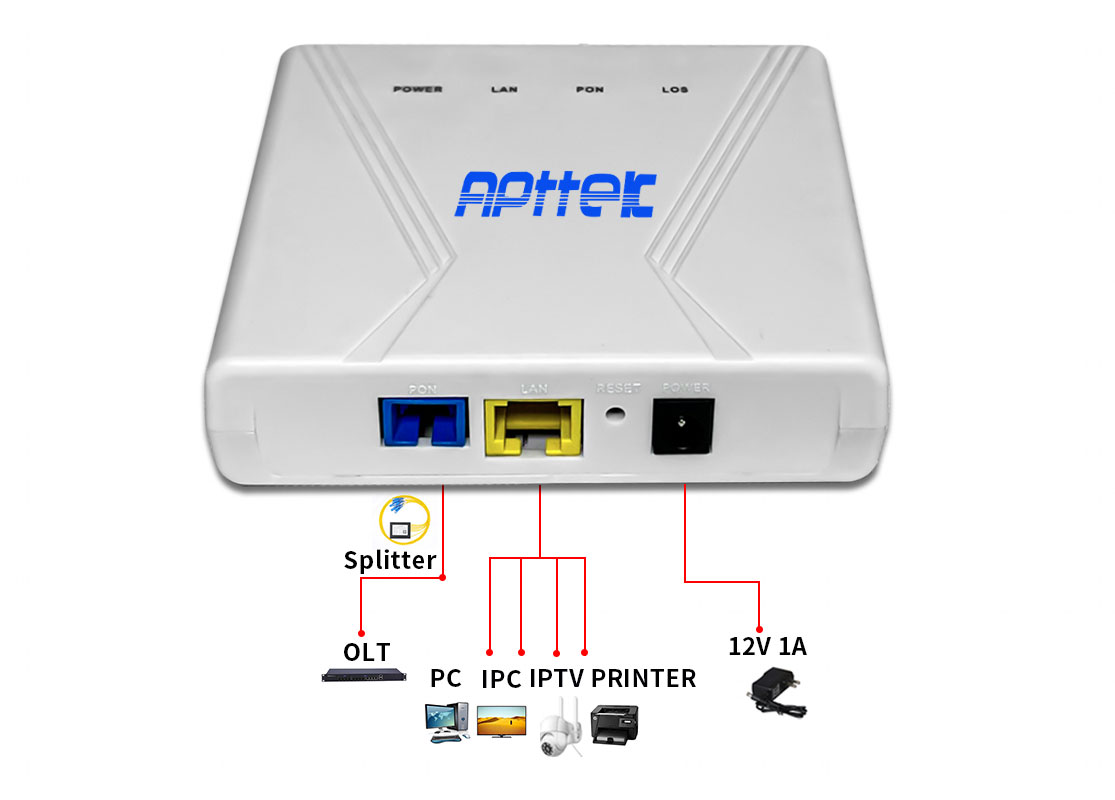

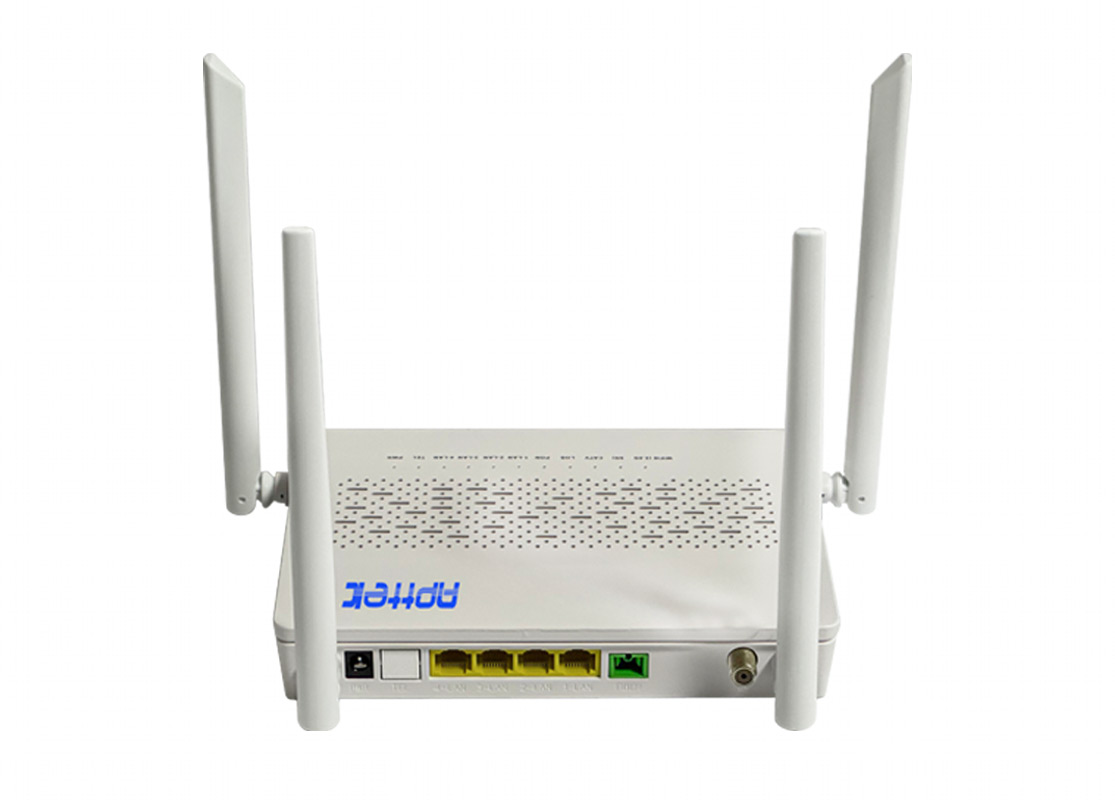

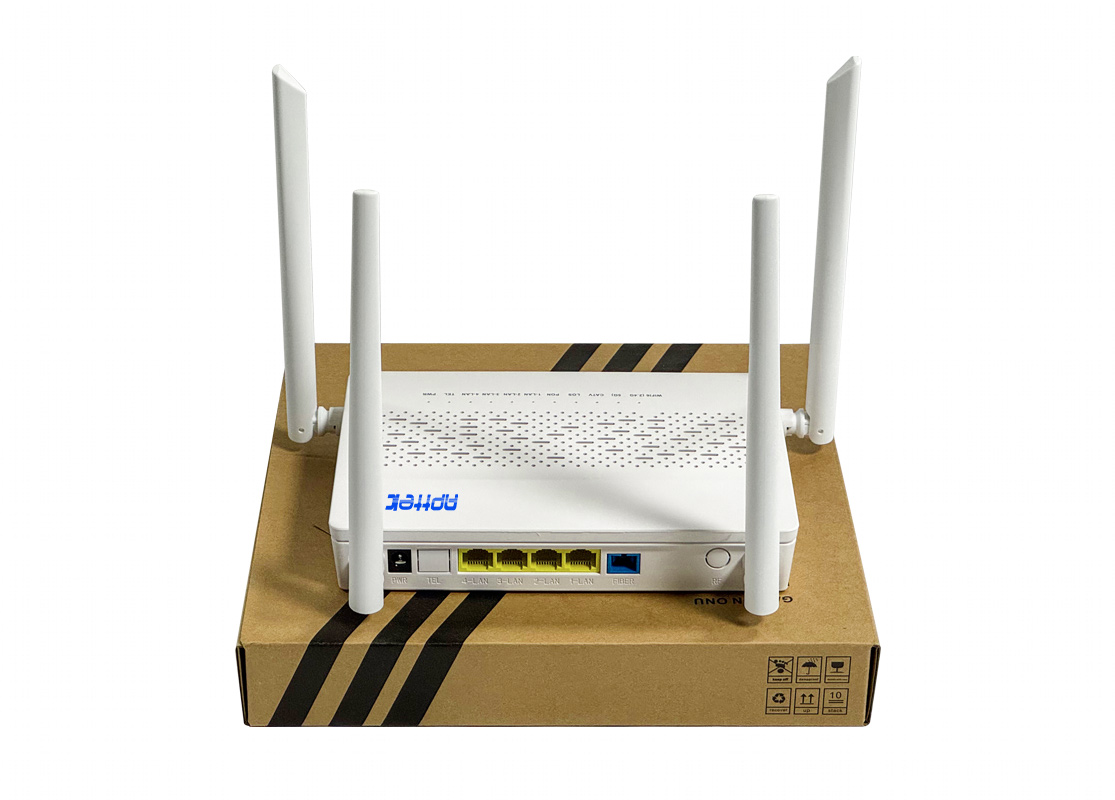

XPON ONU 1GE HGU or SFU Hibrida Bridge and Router XPON ONU

Product Overview

This ONU product is the terminal equipment of a series of xPON which comply fully with ITU-G.987.3 standard ,it is based on mature and stable ,and high cost-effective 10G GPON technology and has high reliability ,easy management ,flexible configuration ,robustness ,good quality service guarantee(Qos).

This ONU supports IEEE802.11b/g/n/ac/ax, called WIFI6, concurrently , a WEB system provided simplifies the configuration of the WIFI and connects to INTERNET conveniently for users.

Product Features
△ comply fully with ITU-G.987.3 standard and OMCI full with ITU-G.988
△ support downlink 9.955 Gbits/s rate and uplink 2.488 Gbits/s rate
△ support download RS(248,216) FEC and uplink RS(248,232) FEC CODEC
△ support 32 TCONT and 256 GEM-port-ID or XGEM-port-ID
△ support AES128 decryption/encryption function
△ support the PLOAM function of G.988 standard
△ support Dying-Gasp check and report
△ good interworking with the OLT from different manufacturers,such as Huawei,Cortina etc
△ down-link port:4*10/100/1000M with auto-negotiation,1*2.5GE+3*10/100/1000M with auto-negotiation
△ Support VLAN function
△ support IEEE802.11b/g/n ,IEEE802.11ac and IEEE802.11ax standard for WIFI
△ antennas gain: 5DBi with external
△ support: the Max PHY rate is 2975.5Mbps（AX3000）
△ comply fully with IEEE802.3ah standard and CTC-3.0 specification
△ support multiply SSID
△ Multiple encryption methods: WPA、WPA2、WAP3
△ operation mode:HGU option
△ one USB port
△ better speed and lower latency gaming effects

Basic Characteristics

Tech parameters		description
1	Up-link interface	1 GPON interface,SC single mode single fiber RX 9.955 Gbits/s rate and TX 2.488 Gbits/s rate Fiber type：SC/UPC Optical power：2~6 dBm Sensitivity：-28 dBm safety: ONU authentication mechanism
2	Wavelength(nm)	TX 1270±10 nm,RX 1577±3 nm
3	Fiber connector	SC/UPC connector
4	Down-link data interface	*4GE or 12.5GE+3GE auto-negotiation Ethernet interface, RJ45 interface**
5	Indicator LED	9 pcs,refer to NO.6 definition of indicator LED
6	DC supply interface	input＋12V 1.5A,footprint：DC0005 ø2.1MM
7	Power	≤10W
8	Operating temperature	-5～+55℃
9	Humidity	10～85%（non-condensation）
10	Storage temperature	-30～+60℃
11	Dimension（MM）	185*12532（mainframe*）
12	Weight	0.5Kg（mainframe）

WIFI characteristics

Tech features	description
antenna	2.4G 2T3R 5G 2T2R ； external，5DBI gain
protocol	2.4G IEEE802.11b/g/n/ax 5G IEEE802.11ac/ax
rate	2.4G Max PHY rate 573.5Mbp，5G Max PHY rate 2402Mbps
encryption methods	WEP,WPA2，WPA3
Tx power	17.5dbm@-43DB DEVM HE40 MCS11； 18dbm@-43DB DEVM HE80/160 MCS10/11；
MU-MIMO	2.4G 802.11ax with OFDMA and MU-MIMO 5G 802.11ax with OFDMA and MU-MIMO ,802.11ac with wave2 MU-MIMO
Rx sensitivity	5G -45dBm@160Mhz bandwidth 1024QAM; 2.4G -51dBm@40Mhz bandwidth 1024QAM;
WPS function	Support

Definition of indicator LED

symbol	color	meaning
PWR	green	ON:successfully connect with power OFF:fail to connect with power
PON	Green	ON:ONU port Link link correctly Flicker: PON port data is transmitting OFF:ONU ports link link faulty
LOS	red	Flicker: fail to connect with PON port OFF: detected fiber to input
LAN	green	ON: Link link correctly in link link faulty Flicker: data is transmitting in twised-pair OFF: link link faulty in twised-pair
(wifi6)2.4G	green	ON: WIFI is running OFF:WIFI startup fail
(wifi6)5G	green	ON: WIFI is running OFF:WIFI startup fail

Ordering Information

Product model	Functions & Interfaces	LAN port	Type of optical device	Default mode
AP446G4R	4LAN+2.4G&5G WIFI6 AX3000	*4GE or 12.5GE+3GE**	TX:1270nm RX:1577nm SC/UPC	HGU

ONU weight chart

Product model

Gross Weight（kg）

Net Weight(Kg)

Size

Outer carton

Product Description

Product

(MM)

Warp

(MM)

Outer carton

number

Weight

（kg）

AP446G4R

0.5

0.3

185*125*32

220*204*38

51*49*44

40

21.5

4LAN+2.4G&5GWIFI6 AX3000
