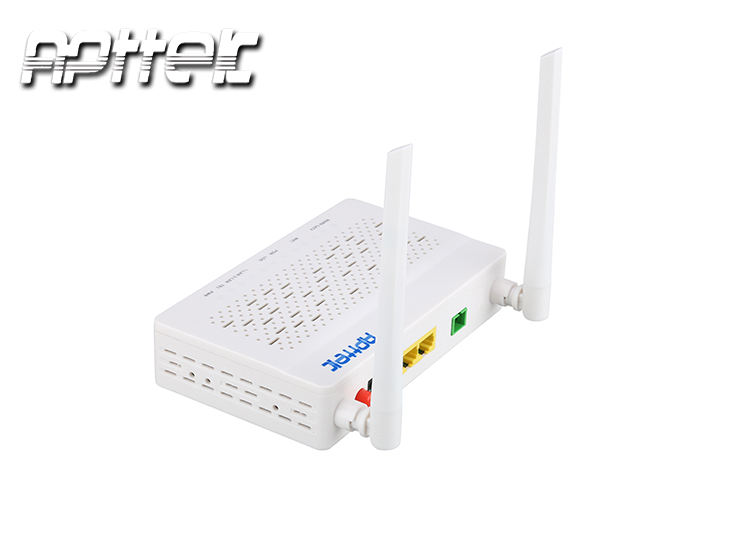

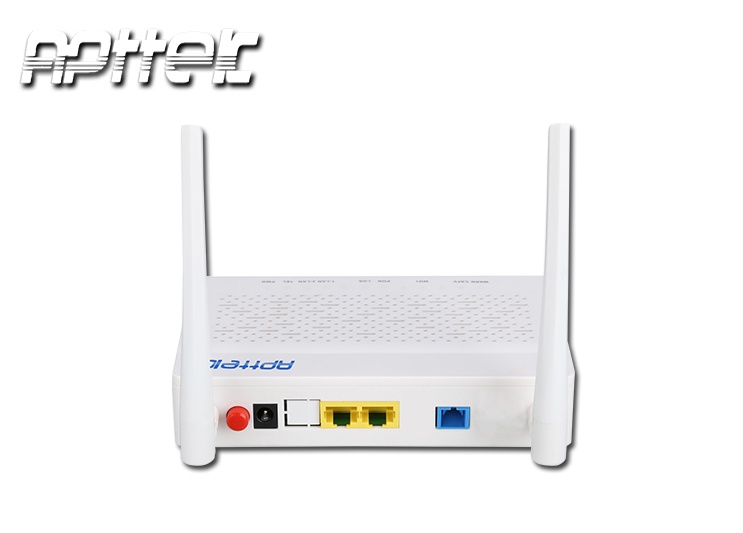

XPON 1GE+1FE+WiFi ONU dual mode

AP321GE is the terminal equipment of a series of XPON which complies fully with ITU-G.984.1/2/3/4 standard and meet the energy-saving of G.987.3 protocol. It is based on mature and stable and high cost-effective XPON technology which adopts high-performance XPON ZTE chipset and has high reliability, easy management, flexible configuration, robustness, good quality service guarantee(Qos).
AP321GE adopts MTK MT7603EN scheme for WIFI application that supports IEEE802.11b/g/n standard. It also provides the WEB management page and simplifies the configuration of WIFI.
AP321GE has the automatic function of EPON and GPON, which is realized by the Pure software.

△ Auto-negotiation (When the onu works, it will automatically identify EPON and GPON mode according to the access optical signal, otherwise it automatically defaults to GPON mode.

xpon onu,ftth supplier, onu manufacturer in China, epon onu, gpon onu manufacturer, gpon onu,wifi onu, wifi ont,2.4g wifi onu,oem onu,oem ont

EPON Mode:
•Comply fully with IEEE802.3ah standard and CTC
EPON device technology requirement
•Support bidirectional FEC
•Support downlink triple churning
•Support AES128 decryption function
•ONU discovery and registration process implemented
by Pure hardware
•Support the report of the CTC requirement
•Support Dying-Gasp check and report
•Support OAM remote management
•Support VLAN function
•Operation mode:SFU or HGU option
•Support TR069,NAT,DMZ,DNS features
•Support Bridge,PPPoE,DHCP and Static IP
configuration for WAN interface
•Support IP,MAC Filtering,Firewall Functionality in
routed mode
•Good interworking with the OLT from different
manufacturers,such as Broadcom,ZTE,HUAWEI, etc.

GPON Mode:
•Comply fully with ITU-G.984.1/2/3/4 standard and
G.987.3 protocol
•Support bidirectional FEC and RS(255,239) FEC
CODEC
•Support 16+1 TCONT and 32+1 GEMPORT
•Support AES128 decryption function of G.984
standard
•Support SBA and DBA dynamically broadband
allocation
•Support the PLOAM function of G.984 standard
•Support Dying-Gasp check and report
•Support synchronous Ethernet
•Support the rogue ONU alarm function
•Support multiple VLAN function
•Operation mode:SFU or HGU option
•Support TR069,NAT,DMZ,DNS features
•Support Bridge,PPPoE,DHCP and Static IP
configuration for WAN interface
•Support IP,MAC Filtering,Firewall Functionality in
routed mode
•Good interworking with the OLT from different
manufacturers,such as HUAWEI,ZTE,Broadcom,etc.

Tech Parameters		Description
Up-link interface	PON quantity	1PC GPON PON
	PON interface receiving rate	2.488 Gbits/s
	PON interface transmitting rate	1.244 Gbits/s
	Optical power	0~4dBm
	Sensitivity	-28 dBm
	Safety	ONU authentication mechanism
Down-link interface	fiber type	single mode , single fiber, 20km max
	wavelength(nm)	TX 1310nm, RX 1490 nm
	fiber port	SC/PC, SC/UPC, SC/APC
	Ethernet port	1PC 10/100/1000M and 1PCs *10/100M with auto-negotiation
Power supply	12V 1A
Power	<= 4W
Operating temperature	-5~+55°C
Humidity	10~85% （non-condensation）
Storage temperature	-30~+70°C

WIFI technical features
WIFI	2.4G
Standard	IEEE802.11b/g/n
Frequency	2.4~2.4835GHz
Transmission speed	IEEE 802.11b :max11Mbps IEEE 802.11g: max54Mbps IEEE 802.11n:max 300Mbps
Channel number	2.4GHz :13
Data Modulation	DSSS,BPSK,CCK QPSK, and 16-QAM/64-QAM
Multiple encryption methods	WFA,WPA,WPA2,WAPI
Antenna	2T2R Mode, external antennas 5DBI Gain per pcs MIMO: 2*2
WPS function	Support

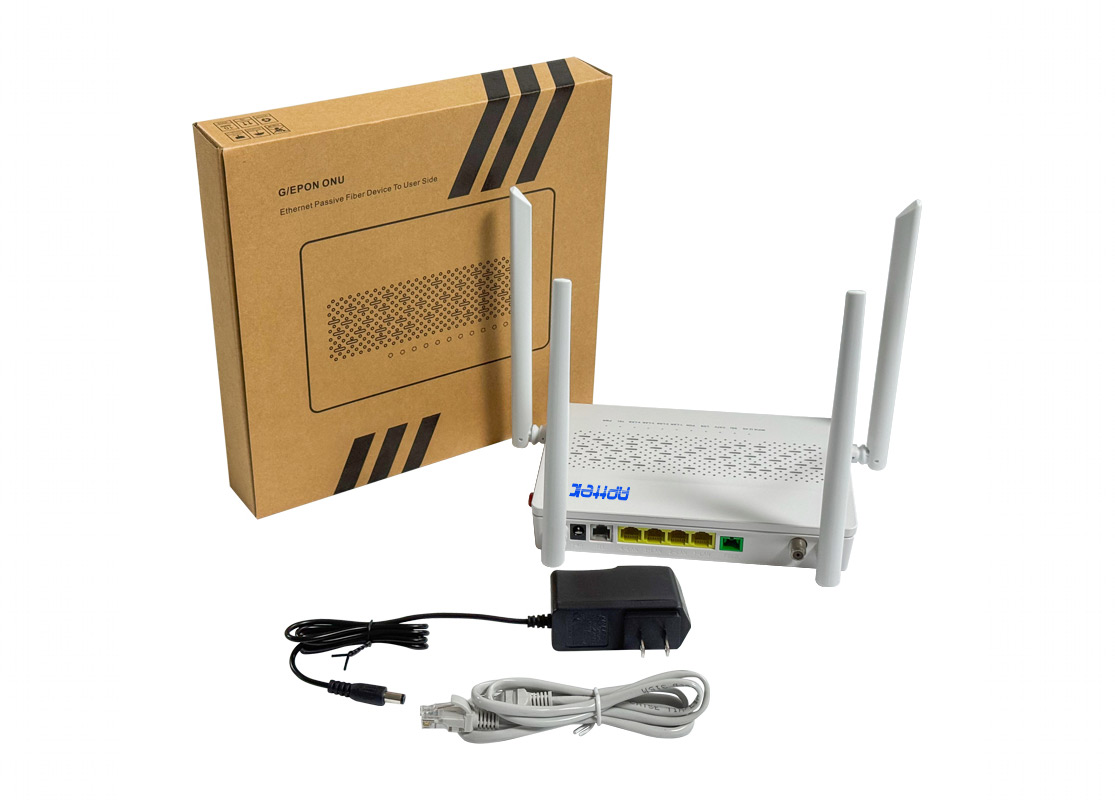

Packaging details:
ONU *1
Manual *1
Charger * 1

all the ONUs/ONTs and other accessories will be well packaged without any damage.
Shipping details: DHL, Fedex, UPS, TNT, Aramex, By Air/Sea, all according to the customers' requirements.
Send inquires to: apt-7990@apttek.com.cn Whatsapp/Skype: +8618390927551

Applications:
Optical Network Unit (ONU) / Optical Network Terminal (ONT)
ONU converts optical signals transmitted via fibers to electrical signals. These electrical signals are then sent to individual
subscribers. In general, there is a distance or other access network between ONU and end user's premises. Furthermore, ONU can send, aggregate, and groom different types of data coming from the customer and send it upstream to the OLT. Grooming is the process that optimizes and reorganizes the data stream so it would be delivered more efficiently. OLT supports bandwidth allocation that allows making smooth delivery of data float to the OLT, which usually arrives in bursts from the customer. ONU could be connected by various methods and cable types, like twisted-pair copper wire, coaxial cable, optical fiber, or through Wi-Fi.
End-user devices may also be referred to as the optical network terminal (ONT). Actually, ONT is the same as ONU in essence. ONT is an ITU-T term, whereas ONU is an IEEE term. Belong to different standard bodies, they both refer to the user side equipment in the GEPON system. But in practice, there is a little difference between ONT and ONU according to their location.
