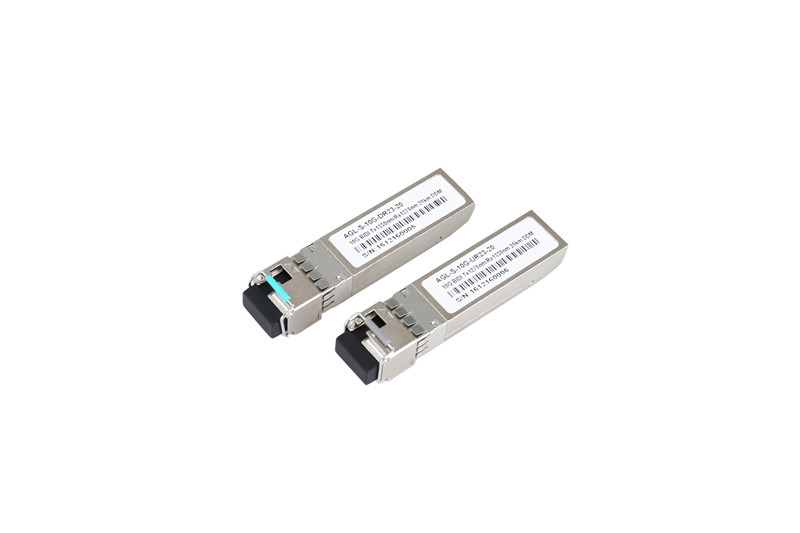

AGL-S-10G-DR23(UR32)-20 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 11.1Gbps,it designed to be compliant with SFF-8472 and SFP+ MSA. The module data link up to20km in 9/125um single mode fiber.

PRODUCT FEATURES

l Up to 11.1Gbps Data Links

l Up to 20km transmission on SMF

l Power dissipation<1.5 W

l 1270nm DFB laser and PIN receiver for AGL-S-10G-DR23-20

1330nm DFB laser and PIN receiver for AGL-S-10G-UR32-20

l 2-wire interface with integrated Digital Diagnostic monitoring

l EEPROM with Serial ID Functionality

l Hot-pluggable SFP+ footprint

l Compliant with SFP+ MSA with LC connector

l Single + 3.3V Power Supply

l Case operating temperature: 0ºC ~+70ºC

APPLICATIONS

l 10GBASE-BX

l 10GBASE-LR/LW

STANDARD

l Compliant with SFF-8472

l Compliant to SFF-8431

l Compliant to 802.3ae 10GBASE-LR/LW

l RoHS Compliant.

ⅠAbsolute Maximum Ratings

Ⅱ Recommended Operating Conditions

Ⅲ Optical Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Transmitter
Average Launched Power	PO	-6	-	-0.5	dBm
Average Launched Power(Laser Off)	Poff	-	-	-30	dBm	Note (1)
Center WavelengthRange	λC	1260	1270	1280	nm	AGL-S-10G-DR23-20
Center WavelengthRange	λC	1320	1330	1340	nm	AGL-S-10G-UR32-20
Side mode suppression ratio	SMSR	30	-	-	dB
Spectrum Bandwidth(-20dB)	σ	-	-	1	nm
Extinction Ratio	ER	3.5		-	dB	Note (2)
Output Eye Mask	Compliant with IEEE 802.3ae					Note (2)
Receiver
Input Optical Wavelength	λIN	1320	1330	1340	nm	AGL-S-10G-DR23-20
Input Optical Wavelength	λIN	1260	1270	1280	nm	AGL-S-10G-UR32-20
Receiver Sensitivity	Psen	-	-	-15	dBm	Note (3)
Input Saturation Power (Overload)	PSAT	0.5	-	-	dBm	Note (3)
Los Of Signal Assert	PA	-30	-	-	dBm
Los Of Signal De-assert	PD	-	-	-17	dBm
LOS -Hysteresis	PHys	0.5	-	5	dB

Note:

1. The optical power is launched into SMF

2. Measured with RPBS 2^31-1 test pattern @10.3125Gbs

3. Measured with RPBS 2^31-1 test pattern @10.3125Gbs BER=<10^-12

Model No.	SPEC	Wavelength	Emitter	Temperature	Port	Unit	Compatibility
10GE SFP
AGL-S-10GB-SR850	10G,Multi mode Dual fiber, DDM,300m	850nm	VCSEL	0～70	LC	PCS	cisco H3C Optional
AGL-S-10GB-LR1310-10	10G,Single mode,Daul fiber,DDM,20KM	1310nm	DFB	0～70	LC	PCS	cisco H3C Optional
AGL-S-10GB-ER1550-40	10G,Single mode,Duaul fiber,DDM, 40KM	1550nm	DFB	0～70	LC	PCS	cisco H3C Optional

10GE BIDI SFP
AGL-S-10G-DR23-20	10G Single mode Single fiber,DDM, 20KM SFP+	Tx1270nm/Rx1330nm	DFB	0～70	LC	PCS	cisco H3C Optional
AGL-S-10G-UR32-20	10G Single mode Single fiber,DDM,20KM SFP+	Tx1330nm/Rx1270nm	DFB	0～70	LC	PCS	cisco H3C Optional
AGL-S-10G-DR23-40	10G Single mode Single fiber,DDM,40KM SFP+	Tx1270nm/Rx1330nm	DFB	0～70	LC	PCS	cisco H3C Optional
AGL-S-10G-UR32-40	10G Single mode Single fiber,DDM,40KM SFP+	Tx1330nm/Rx131270nm	DFB	0～70	LC	PCS	cisco H3C Optional
AGL-S-10G-DR23-60	10G Single mode Single fiber,DDM,60KM SFP+	Tx1270nm/Rx1330nm	DFB	0～70	LC	PCS	cisco H3C Optional
AGL-S-10G-UR32-60	10G Single mode Single fiber,DDM,60KM SFP+	Tx1330nm/Rx131270nm	DFB	0～70	LC	PCS	cisco H3C Optional
AGL-S-10G-DR23-80	10G Single mode Single fiber,DDM,60KM SFP+	Tx1270nm/Rx1330nm	DFB	0～70	LC	PCS	cisco H3C Optional
AGL-S-10G-UR32-80	10G Single mode Single fiber,DDM,60KM SFP+	Tx1330nm/Rx131270nm	DFB	0～70	LC	PCS	cisco H3C Optional
