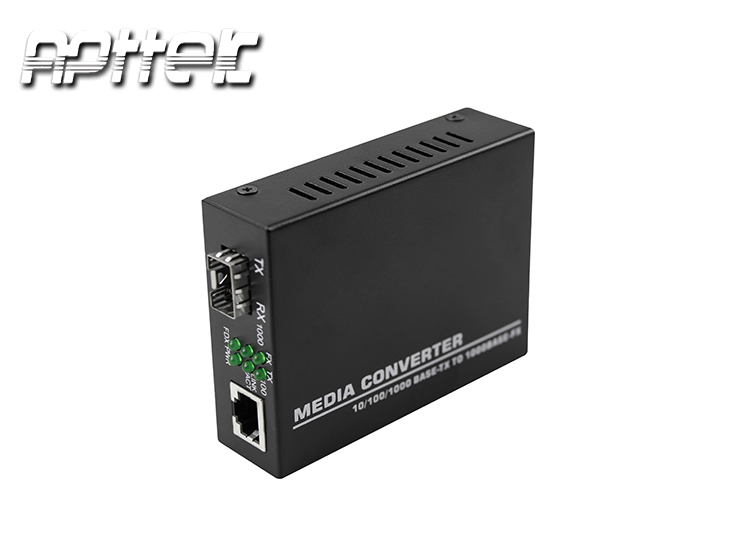

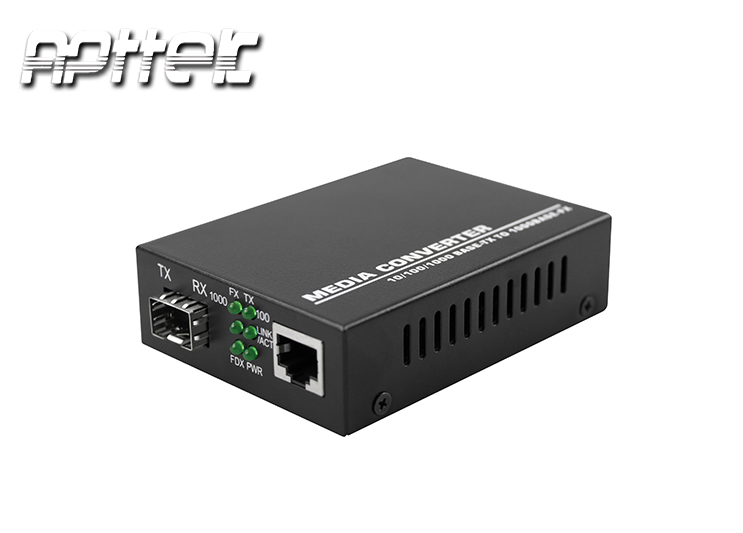

10/100/1000M Gigabit Ethernet converter is used in backbone network transmission and is primarily used for Gigabit Ethernet devices links. It converts Optical-Electric Ethernet signals between 10/100/1000M UTP interface (TX) and 1000M SFP socket (FX). According to customers’requirements, this media converter supports single-mode and multi-mode fibers with a transmission distance of up to 120 km for single-mode fiber and 550 m for multi-mode fiber. It extends the transmission distance through its photoelectric conversion network. The media converter takes advantage of intelligent connection technology to provide auto-negotiation thereby eliminating the need to manually configure or monitor settings.
Fiber Optic Media Converter,10/100/1000 Media Converter,Sfp Media Converter,Fiber Media Converter Sfp Media Converter
Key Feartures:
* Modular design, plug and play * Complies with IEEE 10/100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX standards * Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex * Available in single fiber WDM versions - 1310/1550 nm wavelengths used * Supports automatic cross of twisted pair ports * Alarm LED illuminates to indicate link failure, status LEDs for easy monitoring of device's status
Fiber Optical Interface
10/100M Ethernet Interface
Optical Port:
SFP
Port:
One RJ45 port,
Fiber Optic (Multi-mode):
50/125, 62.5/125um
The Rate:
10/100M adaptive, full/half duplex automatically
Fiber Optic (Single mode):
9/125, 10/125um
Standards:
Compliant with IEEE 802.3/802.3u, IEEE 802.1Q(VLAN)
Working Environment
Power supply:
AC100~260V/DC5V
Power consumption:
<5W
Operating Temperature:
0℃~50℃
Storage Temperature:
-40℃~+70℃
Relative Humidity:
5%~95%
Dimensions(mm):
93(L) x 70(W) x 26(H) mm
Packaging details:
Media Converter *1
Manual *1
Charger * 1
all the Fiber Media Converters and other accessories will be well packaged without any damage.
Shipping details: DHL, Fedex, UPS, TNT, Aramex, By Air/Sea, all according to the customers' requirements. Send inquires to: apt-7990@apttek.com.cn Whatsapp/Skype: +8618390927551
Applications of Media Converter
Media converters do more than convert copper-to-fiber and convert between different fiber types. Media converters for Ethernet networks can support integrated switch technology, and provide the ability to perform 10/100 and 10/100/1000 rate switching. Additionally, media converters can support advanced bridge features which including VLAN, Quality of Service (QoS) prioritization, Port Access Control and Bandwidth Control and really facilitate the deployment of new data, voice and video to end users. Media converters can provide all these sophisticated switch capabilities in a small, cost-effective device.
