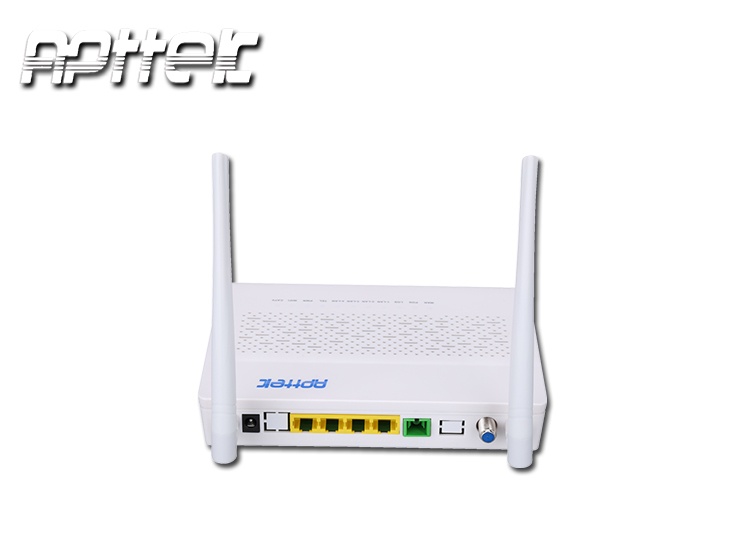

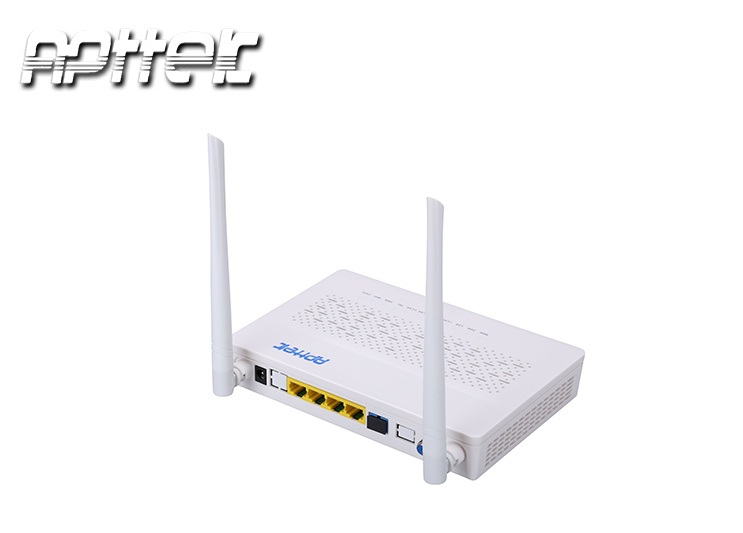

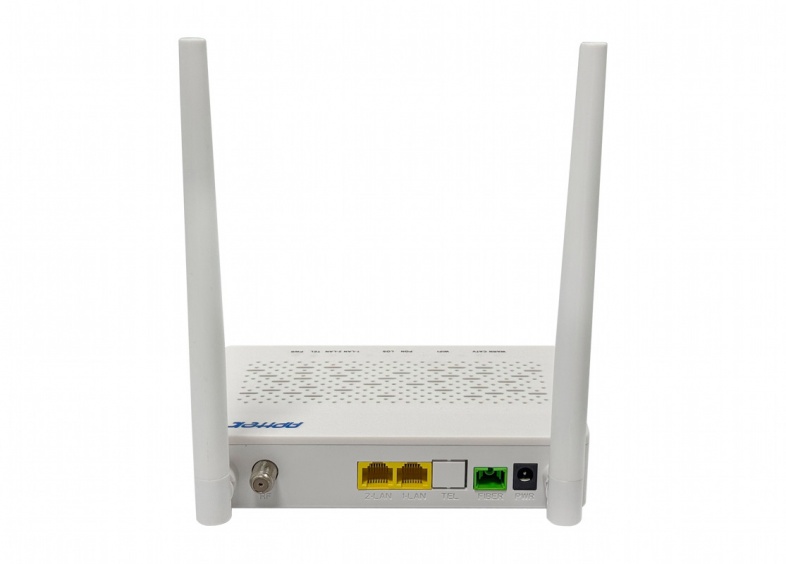

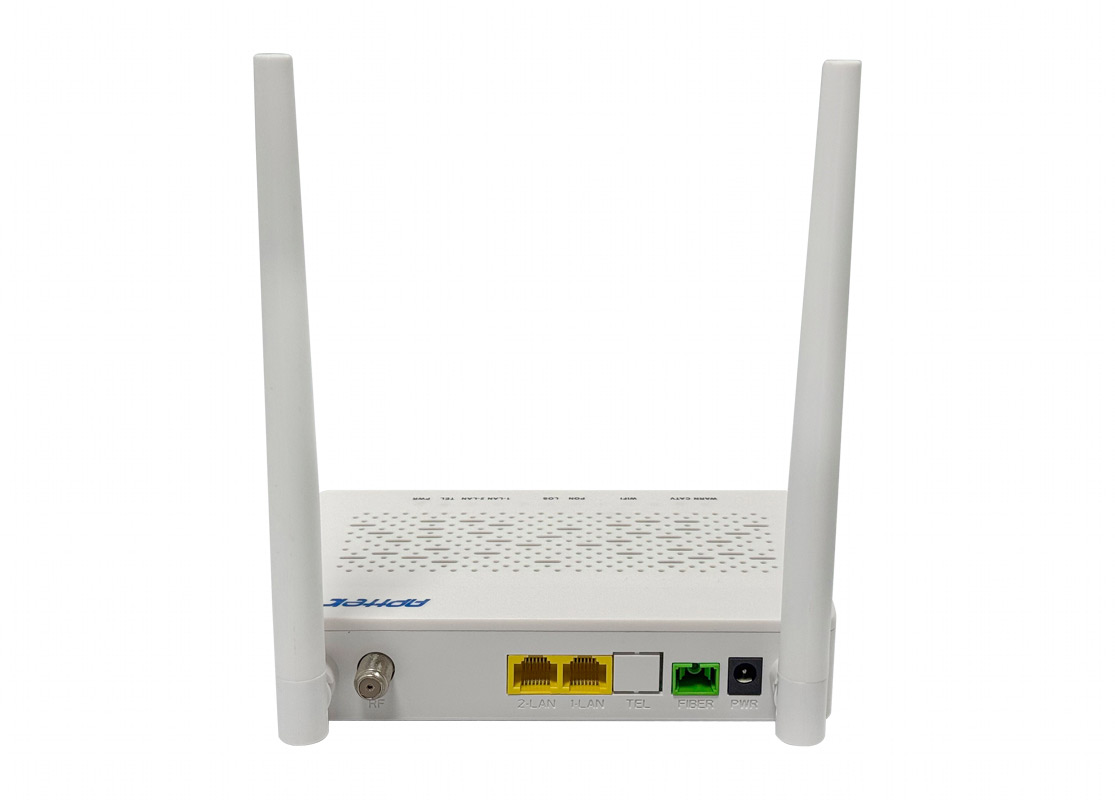

AP2412GDE ONUproduct is the terminal equipment of a series of GPON which comply fully with ITU-G.984.1/2/3/4 standard and meet the energy-saving of G.987.3 protocol, It is based on mature and stable and high cost-effective GPON technology which adopts high-performance xPON ZTE chipset and has high reliability， easy management，flexible configuration，robustness，good quality service guarantee(Qos).

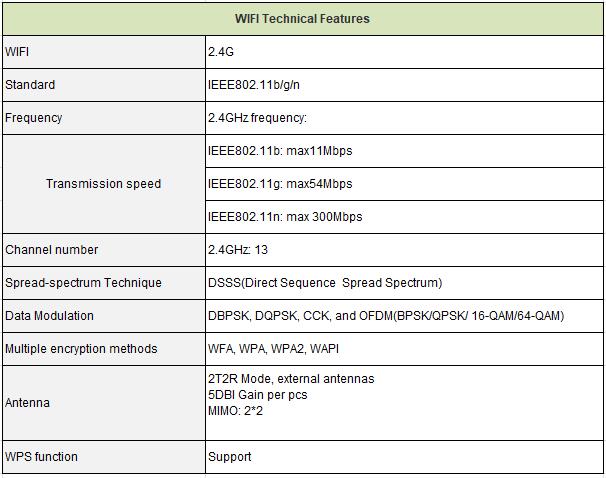

It also adopts MTK MT7603EN scheme for WIFI application that supports IEEE802.11b/g/n standard at the same time，a WEB system provided simplifies the configuration and connects to INTERNET conveniently for users.

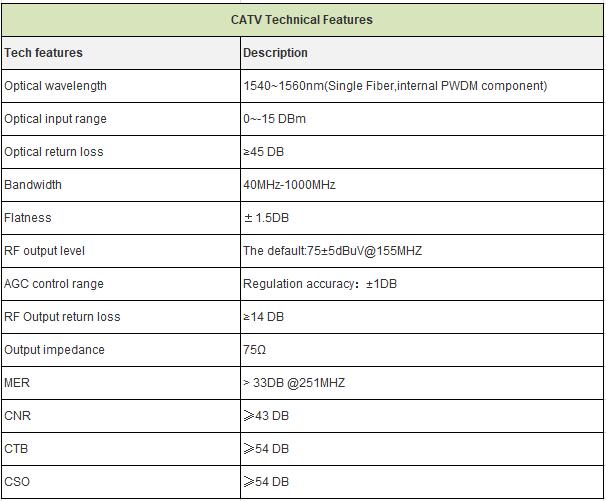

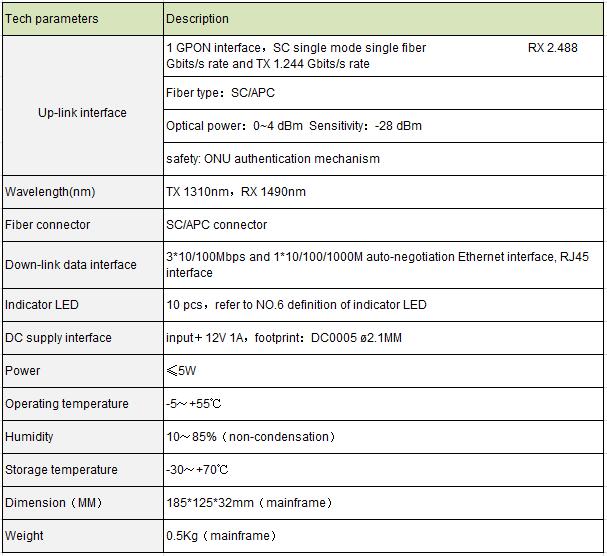

△ comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol △ support downlink 2.488 Gbits/s rate and uplink 1.244 Gbits/s rate △ support bidirectional FEC and RS(255,239) FEC CODEC △ support 32 TCONT and 256 GEMPORT △ support AES128 decryption function of G.984 standard △ support SBA and DBA dynamically broadband allocation △ support the PLOAM function of G.984 standard △ support Dying-Gasp check and report △ support synchronous Ethernet △ good interworking with the OLT from different manufacturers，such as huawei,ZTE,Cortina etc △ down-link LAN ports: 3*10/100M with auto-negotiation 1*10/100/1000M with auto-negotiation △ support the rogue ONU alarm function △ Support VLAN function △ operation mode:SFU or HGU option △ support IEEE802.11b/g/n standard for WIFI △ double antennas: external box with 5DBi △ support of 300Mbps PHY rate △ support multiply SSID △ Multiple encryption methods :WFA、WPA、WPA2、WAPI △ It supports CATV function
