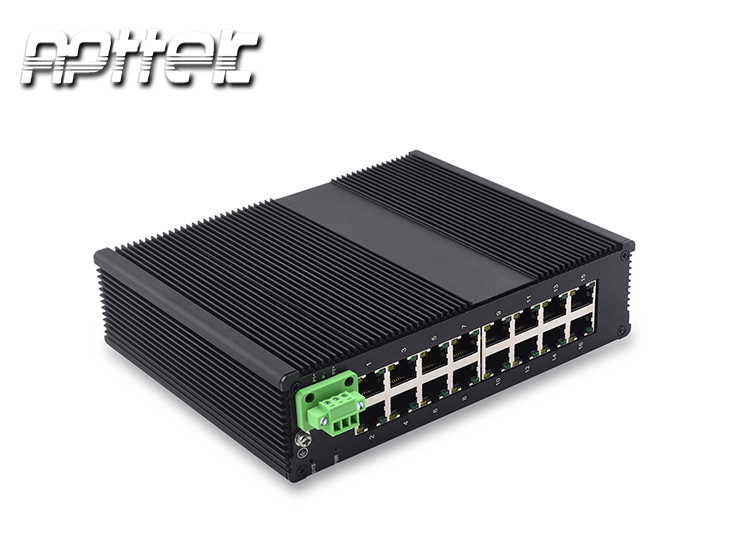

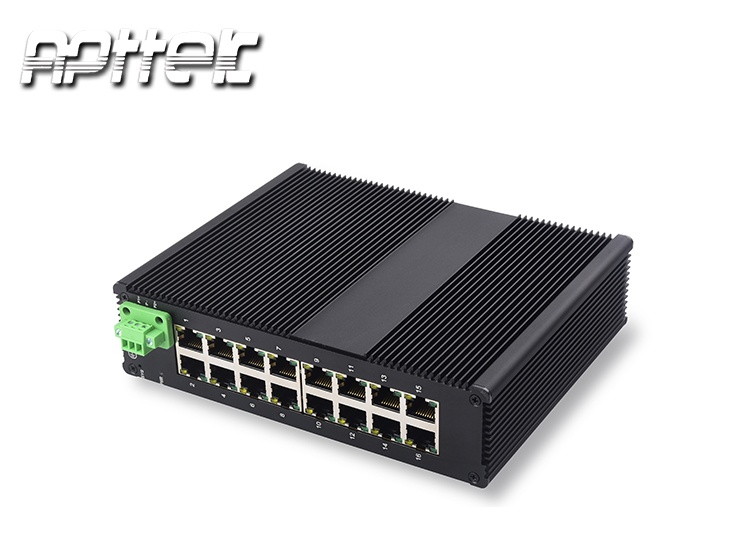

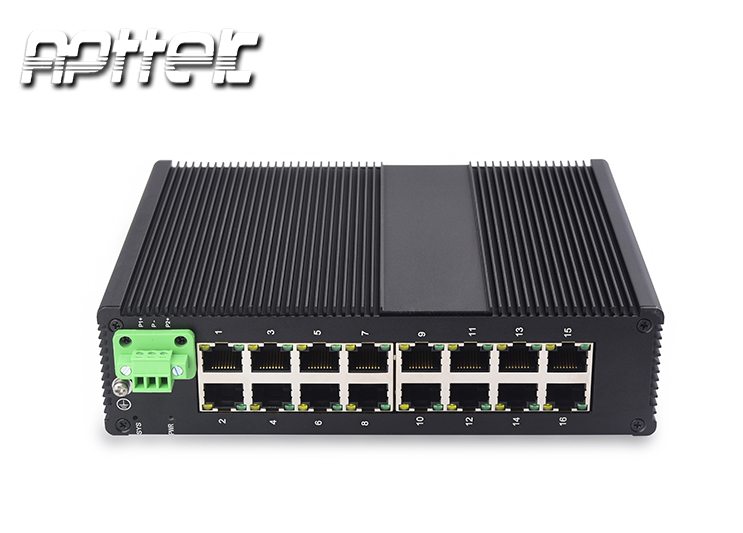

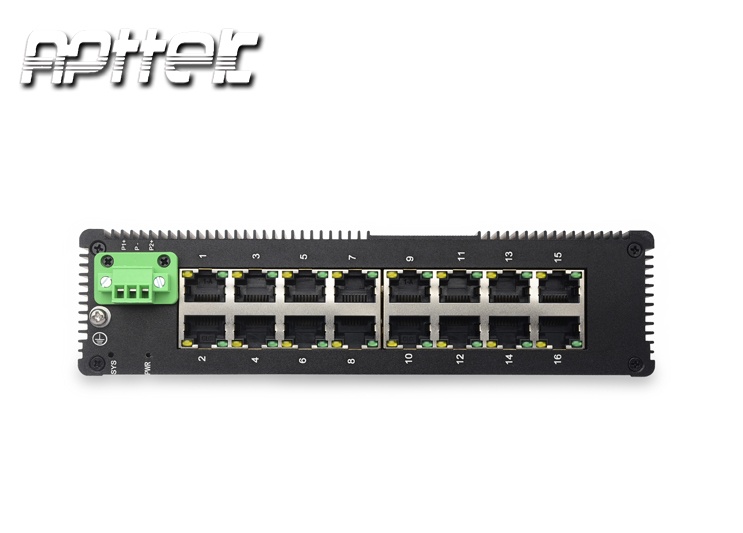

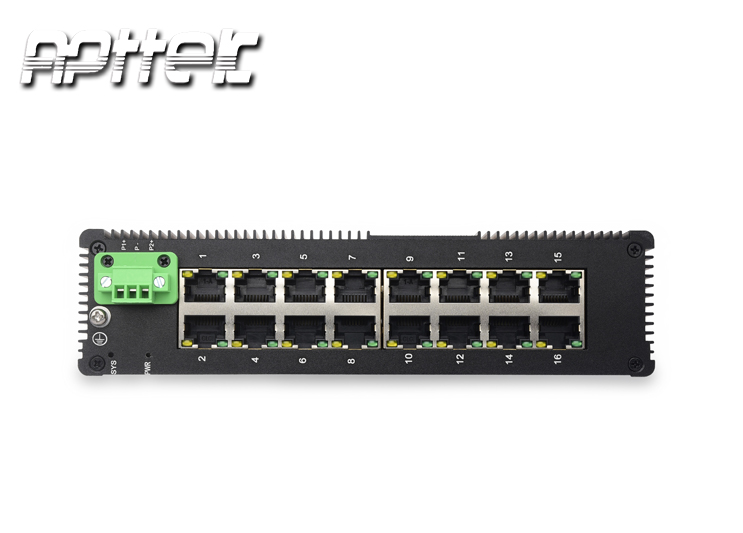

16 Ports 10/100M Industrial Switch

APT1116 Series is one kind of our 100M Industrial Ethernet Switch developed by our company. It supports 16 ports RJ45 10/100 Base auto-negotiation .

APT1116 Series industrial Ethernet switch fully comply with industrial standard design and materials application. Its case adopts Aluminum alloy which has great attribution of cooling efficiency. Its PCBA design is also based on offering excellent working stability, functionality and quality under an environment of high temperature/ extreme low temperature or lightning weather. Industrial grade three-level ESD protection makes it easily apply to work in multiple places like smart transportation, Outdoor monitoring, industrial network, smart city and other exterior environments.

Product Specifications

Ports: RJ45 ports: 16* 10/100M Base-T Power port: 3P Phoenix terminal, dual power supply redundancy Led lights: Power Indicator: PWR (green); Optical port: FX (green); RJ45 indicator: Yellow (100 or POE) Green (Link)	Cable type and distance Twisted pair cable: 0~100m (CAT5e, CAT6) Single-mode fiber: No Multimode fiber: No Optical fiber interface: No
Network topology & scale Star topology: support Bus topology : support Tree topology : support	Electrical characteristics Input voltage: DC10-55V/AC 100-240V 50-60HZ
Protection IP rating: IP40 Power surge protection: IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) Power consumption: Non-POE full load (Total power) <4W, POE full load <60W	POE support can be added POE port: 1-16 POE protocol: 802.3af, 802.3at POE pin assignment: 1,2,3,6 POE management mode: does not support
Layer 2 switching Exchange capacity: 56G MAC address table: 8k VLAN support and quantity: Support 4096 VLAN IDs Report buffer: 23.9Mbps Forwarding delay: <10us Port characteristics: Cross-connect and self- adaptive	Flow control: support Packet length: supports 10k bytes Storm suppression: support Protection IP rating: IP40 Power surge protection: IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) Network port surge protection: IEC 61000-4-5 Level 3 (6KV/2KV) (10/700us) Radiation immunity: IEC 61000-4-3 Level 3 (10V/m) Momentary pulse anti-interference: IEC 61000-4-4 Level 3 (1V/2V) Conducted anti-interference: IEC 61000-4-6 Level 3 (10V/m) Power frequency magnetic field immunity: IEC 61000-4-8 Level 4 (30A/m) Voltage drop: IEC 61000-4-11 Level 3 (10V) EMI: CLASS A Anti-static interference: IEC 61000-4-2 Level 4 (15KV/30KV) Free fall: 0.5m
Environmental conditions Working temperature: -40°C ~+85°C Storage/transport temperature: -40°C ~+85°C Relative humidity: 5%~95% does not support condensation (non-condensing) Cooling method: fanless design, natural heat dissipation MTBF: 100,000 hours	Mechanical structure Size: 181x146x47mm Installation method: card rail installation Weight: 1KG
Related certification Certification: CE, FCC, RoHS, Ministry of Public Security inspection	Matching and accessories Auxiliary equipment: equipment, terminal, certificate, manual, optional power adapter

Order Information

Feature	Model No.
5 ports 10/100 Industrial Ethernet Switch	APT1105
8 ports 10/100 Industrial Ethernet Switch	APT1108
5 ports 10/100/1000 Industrial Ethernet Switch	APT1105G
8 ports 10/100/1000 Industrial Ethernet Switch	APT1108G
16 ports 10/100 Industrial Ethernet Switch	APT1116
16 ports 10/100/1000 Industrial Ethernet Switch	APT1116G
5 ports 10/100 Industrial Ethernet Switch with POE	APT1105-P
8 ports 10/100 Industrial Ethernet Switch with POE	APT1108-P
5 ports 10/100/1000 Industrial Ethernet Switch with POE	APT1105G-P
8 ports 10/100/1000 Industrial Ethernet Switch with POE	APT1108G-P
1 Fiber Port (Single mode single fiber) +1 Port 10/100M RJ45 Industrial Ethernet Switch	APT1101F-A/B
1 Fiber Port (Single mode single fiber)+2 Ports 10/100M RJ45 Industrial Ethernet Switch	APT1102F-A/B
1 Fiber Port (Single mode single fiber)+4 Port 10/100M RJ45 Industrial Ethernet Switch	APT1104F-A/B
2 Fiber Ports (Single mode single fiber)+4 Ports 10/100M RJ45 Industrial Ethernet Switch	APT1104F2-A/B
1 Fiber Port (Single mode single fiber) +1 Port 10/100/1000M RJ45 Industrial Ethernet Switch	APT1101G-A/B
1 Fiber Port (Single mode single fiber) +2 Ports 10/100/1000M RJ45 Industrial Ethernet Switch	APT1102G-A/B
1 Fiber Port (Single mode single fiber) +4 Ports 10/100/1000M RJ45	APT1104G-A/B
2 Fiber Ports (Single mode single fiber) +4 Ports 10/100/1000M RJ45	APT1104G2-A/B
1 Fiber Port (Single mode single fiber) +8 Ports 10/100/1000M RJ45 Industrial Ethernet Switch	APT1108G-A/B
1 SFP Port +1Port 10/100/1000M RJ45 Industrial Ethernet Switch	APT1101GL
1 SFP Port +2Ports 10/100/1000M RJ45 Industrial Ethernet Switch	APT1102GL
1 SFP Port +4Ports 10/100/1000M RJ45 Industrial Ethernet Switch	APT1104GL
2 SFP Port +4Ports 10/100/1000M RJ45 Industrial Ethernet Switch	APT1104GL2
2 SFP Port +8Ports 10/100/1000M RJ45 Industrial Ethernet Switch	APT1108GL2
