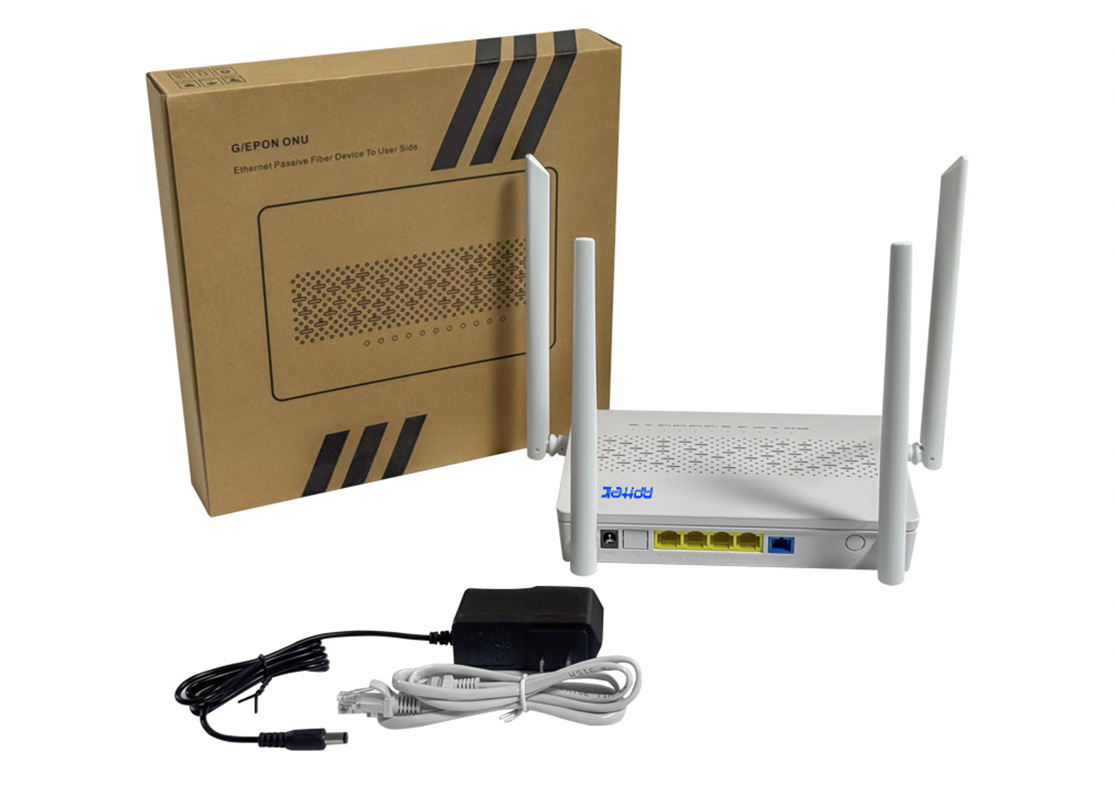

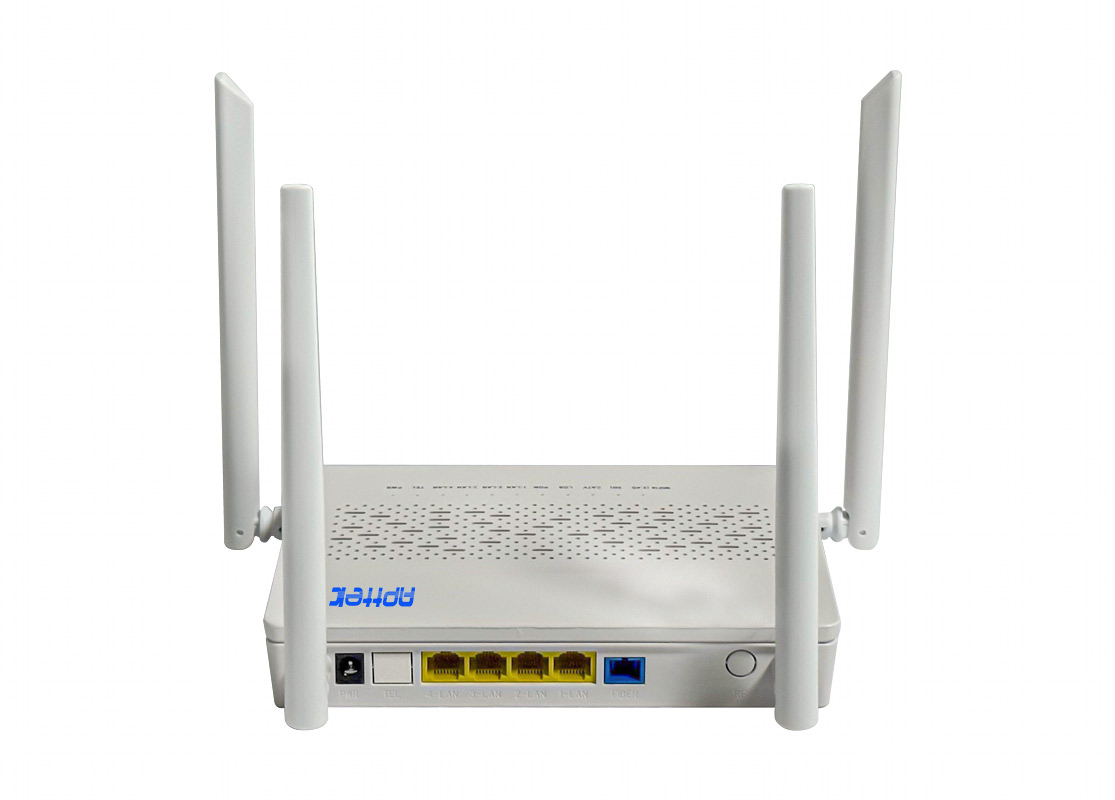

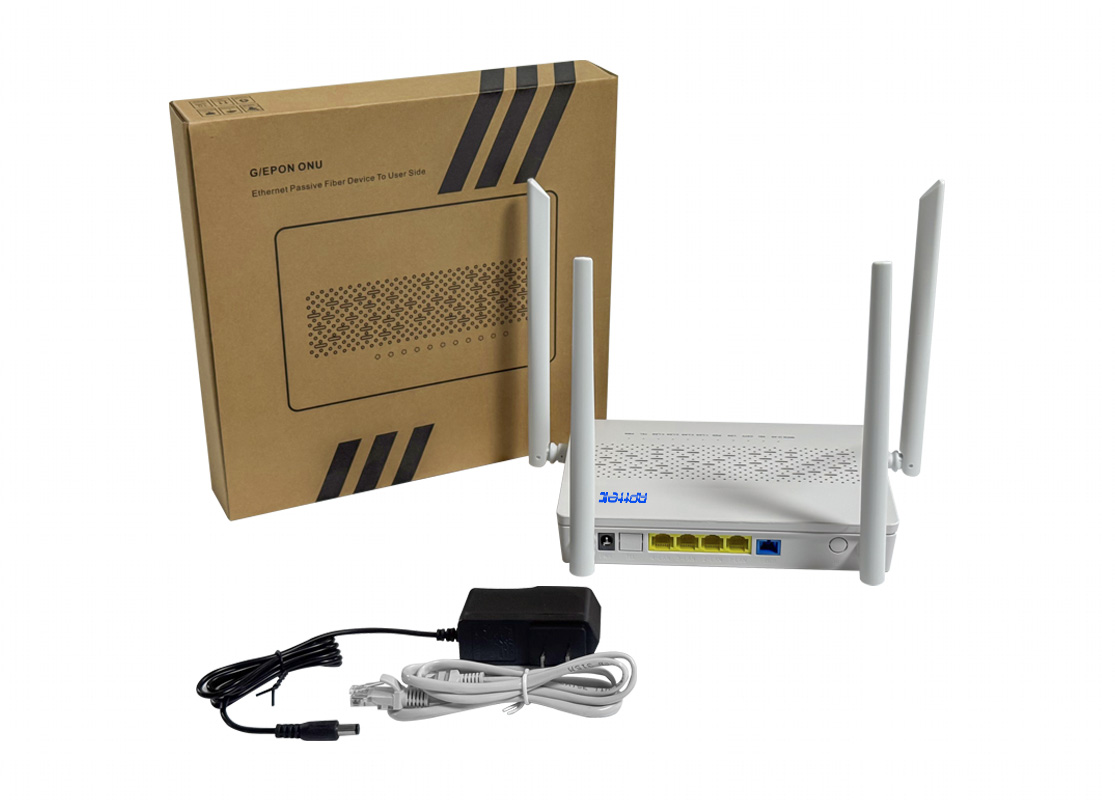

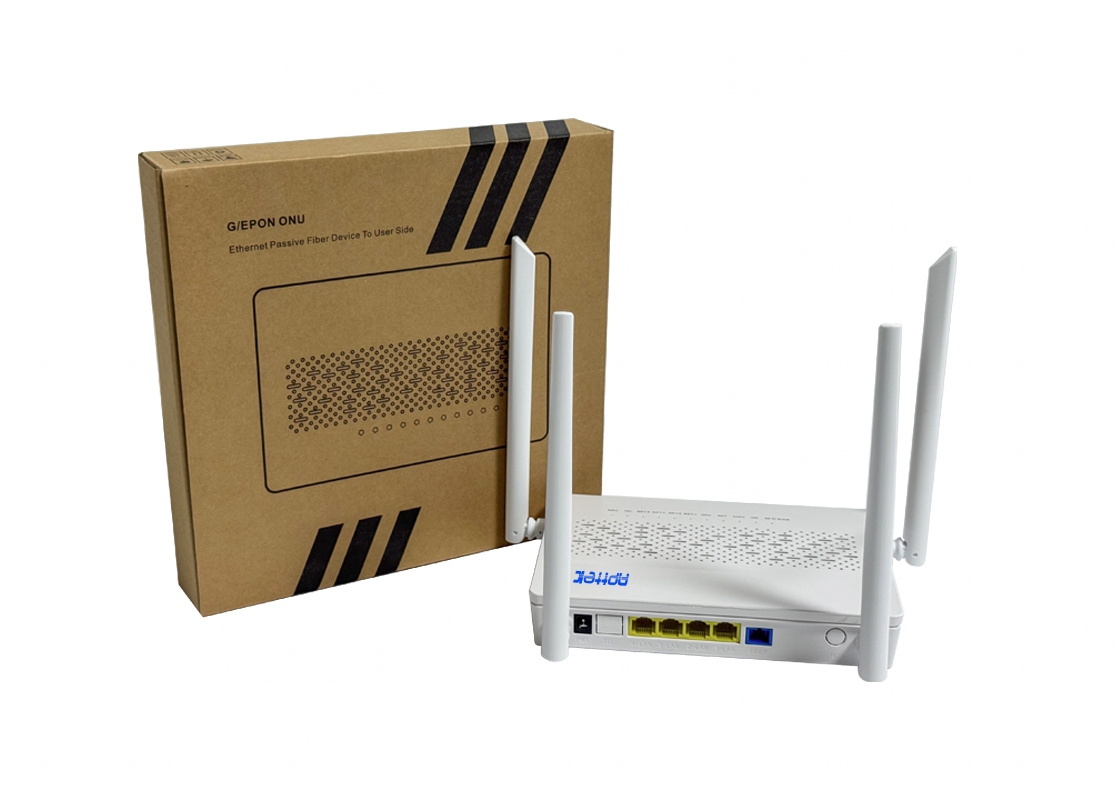

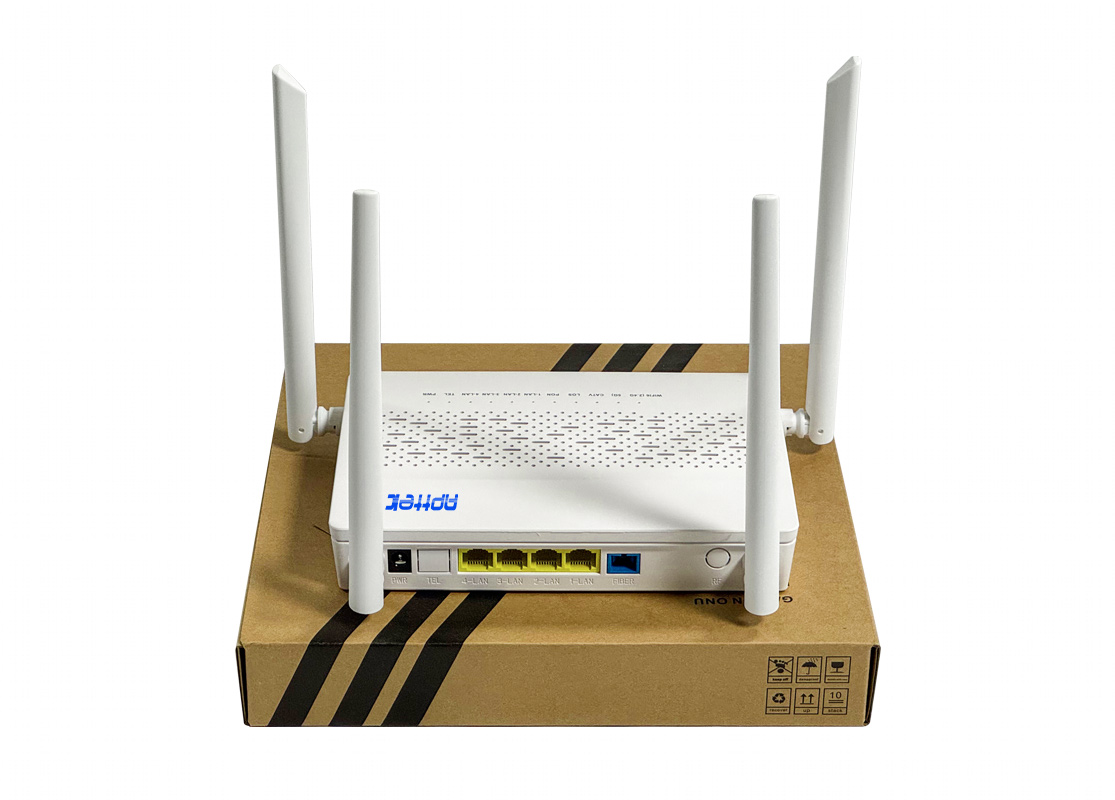

ONU product is the terminal equipment of a series of xPON which comply fully with ITU-G.984.1/2/3/4 standard and meet the energy-saving of G.987.3 protocol,ONU is based on mature and stable and high cost-effective GPON technology which adopts high-performance xPON REALTEK chipset and has high reliability， easy management，flexible configuration，robustness，good quality service guarantee(Qos). This ONU supports IEEE802.11b/g/n/ac/ax, called WIFI6, concurrently , a WEB system provided simplifies the configuration of the WIFI and connects to INTERNET conveniently for users. Support G/E PON automatic identification and mutual conversion function.
△comply fully with ITU-G.987.3 standard and OMCI full with ITU-G.988 △ support downlink 2.488 Gbits/s rate and uplink 1.244 Gbits/s rate △ support download RS(248,216) FEC and uplink RS(248,232) FEC CODEC △support 32 TCONT and 248 GEMPORT △support AES128 decryption/encryption function △ support the PLOAM function of G.984 standard △ support Dying-Gasp check and report △ good interworking with the OLT from different manufacturers,such as Huawei,Cortina etc △ down-link port: 4*10/100/1000M with auto-negotiation 1*2.5GE+3*10/100/1000M with auto-negotiation △ Support VLAN function △ support IEEE802.11b/g/n ,IEEE802.11ac and IEEE802.11ax standard for WIFI △ antennas gain: 5DBi with external △ support: the Max PHY rate is 2975.5Mbps（AX3000） △ comply fully with IEEE802.3ah standard and CTC-3.0 specification △ support multiply SSID △ Multiple encryption methods: WPA、WPA2、WAP3 △ operation mode:HGU option △ one USB port △better speed and lower latency gaming effects
Basic Characteristics
Tech parameters
description
1

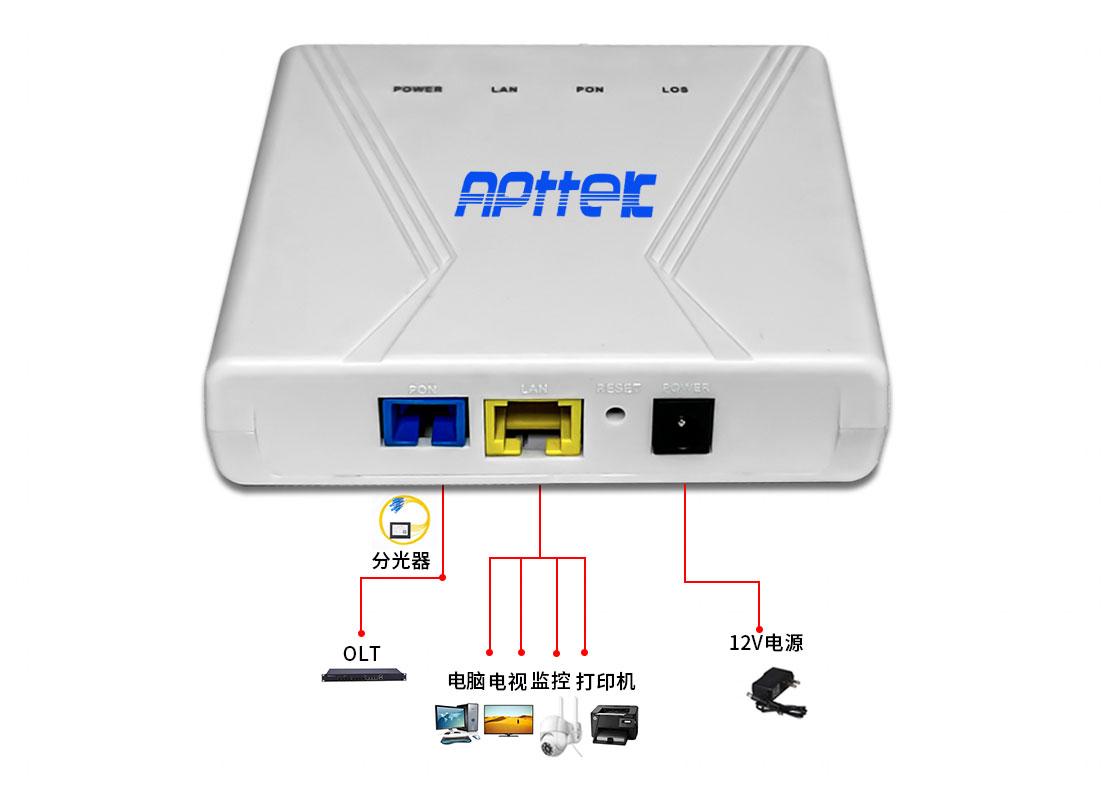

Up-link interface
1 GPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s rate Fiber type：SC/APCand SC/UPC
Optical power：1~4 dBm Sensitivity：-28 dBm
safety: ONU authentication mechanism
2
Wavelength(nm)
TX 1310nm,RX 1490nm
3
Fiber connector
SC/APC and SC/UPC connector
4
Down-link data interface
4*GE or 1*2.5GE+3*GE auto-negotiation Ethernet interface, RJ45 interface
5
Indicator LED
9 pcs,refer to NO.6 definition of indicator LED
6
DCsupply interface
input＋12V 1.5A,footprint：DC0005 ø2.1MM
7
Power
≤12W
8
Operating temperature
-5～+55℃
9
Humidity
10～85%（non-condensation）
10
Storage temperature
-30～+60℃
11
Dimension（MM）
185*125*32（mainframe）
12
Weight
0.5Kg（mainframe）
WIFI characteristics
Tech features
description

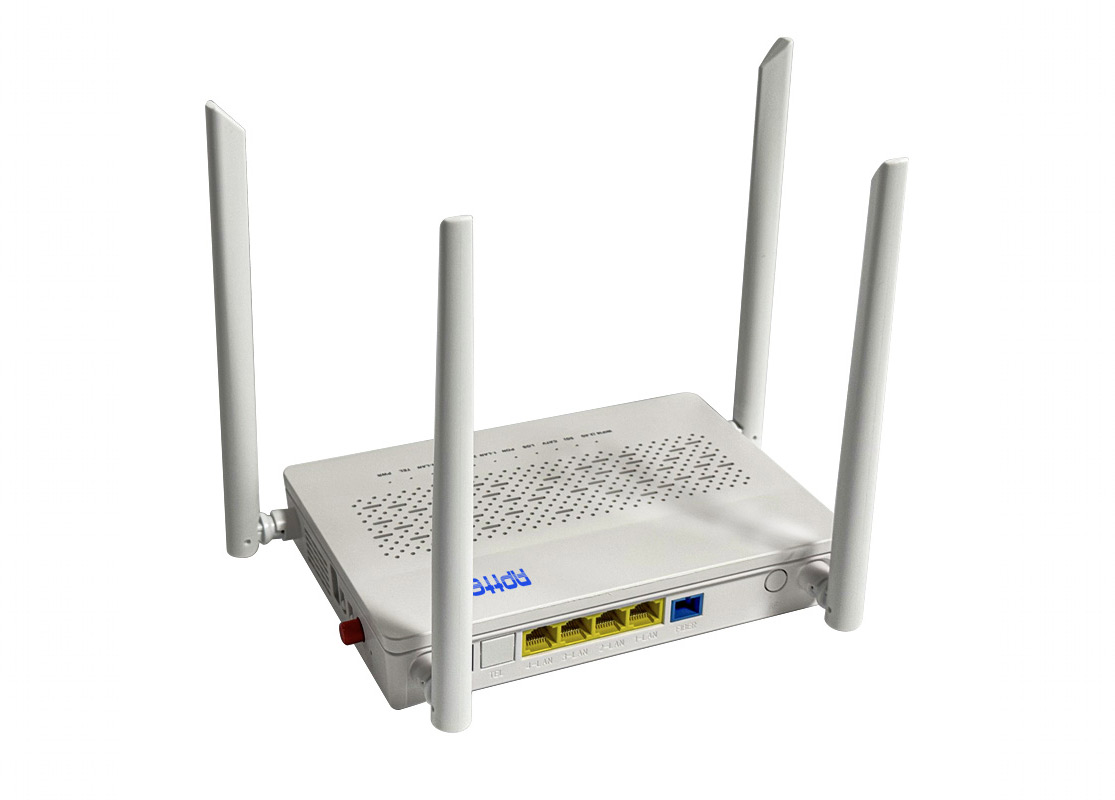

antenna
2.4G 2T3R 5G 2T2R ； external，5DBI gain
protocol
2.4G IEEE802.11b/g/n/ax 5G IEEE802.11ac/ax
rate
2.4G Max PHY rate 573.5Mbp，5G Max PHY rate 2402Mbps
