SFP GPON OLT C++ works perfectly with Huawei, ZTE, Cisco, and other brands OLT.

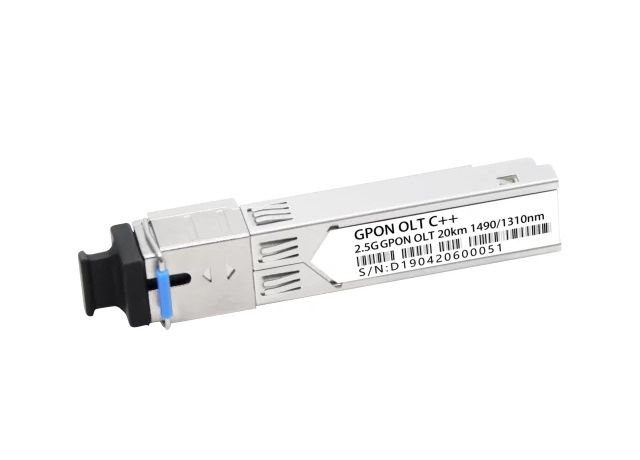

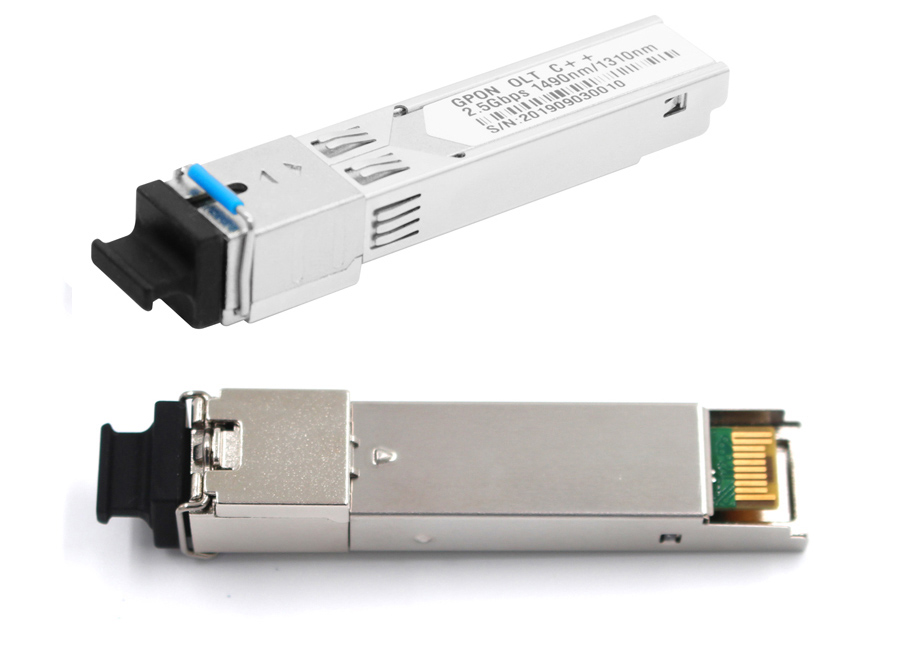

SFP GPON OLT C++ Product Overview

GPON OLT C++ SFP is inserted in service board like GPFD GPBD GPBH GPHF etc and provides one or more transceiver module slot. It provides a full range of optical transceivers, such as SFP+ (SFP Plus) transceiver, X2 transceiver, XENPAK transceiver, XFP transceiver, SFP (Mini GBIC) transceiver, GBIC transceiver, CWDM/DWDM transceiver, 40G QSFP+ & CFP, 3G-I video SFP, WDM Bi-Directional transceiver and PON transceiver.

• Product Features:

  • Single fiber bi-directional data links asymmetric TX 2488Mbps/RX1244Mbps application
  • 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
  • Small Form Factor Pluggable package with SC/UPC Connector
  • Support Class C++ 17~32dB attenuation range application (With FEC)
  • Reset burst-mode receiver design support more than 15dB dynamic range
  • 0 to 70°C operating temperature
  • Single 3.3V power supply
  • Digital diagnostic monitoring interface
  • Digital burst RSSI function to monitor the input optical power level
  • LVPECL compatible data input/output interface
  • LVTTL transmitter disable control
  • LVTTL transmitter laser fault alarm
  • LVTTL receiver Signal Detect (SD) indication response within 50ns.
  • Low EMI and excellent ESD protection
  • Class I laser safety standard IEC-60825 compliant



  Applications:

  Gigabit-capable Passive Optical Networks (GPON) Class C++ 20Km 17~32dB attenuation range

• Product Name:	GPON OLT SFP	Datarate:	2.488 Gbps / 1.244 Gbps
  Wavelength:	TX: 1490 Nm, RX: 1310 Nm	Distance:	Class C++
  Connector:	SC	Application:	MA5680T OLT, ZTE , Huawei, etc OLT
  High Light:	sfp fiber optic transceiver ,  sfp transceiver modules

• Services support：


• OEM ODM for MOQ 500 pieces;

• Technical support all lifespan;

• Free sample for old customers.
