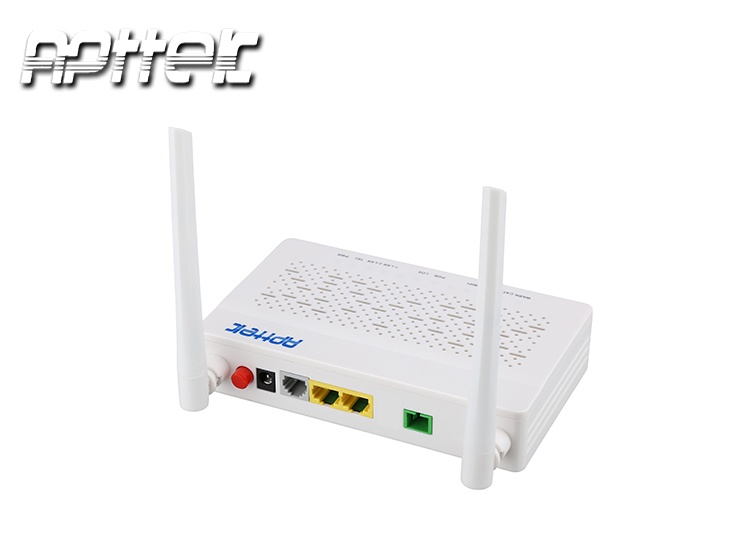

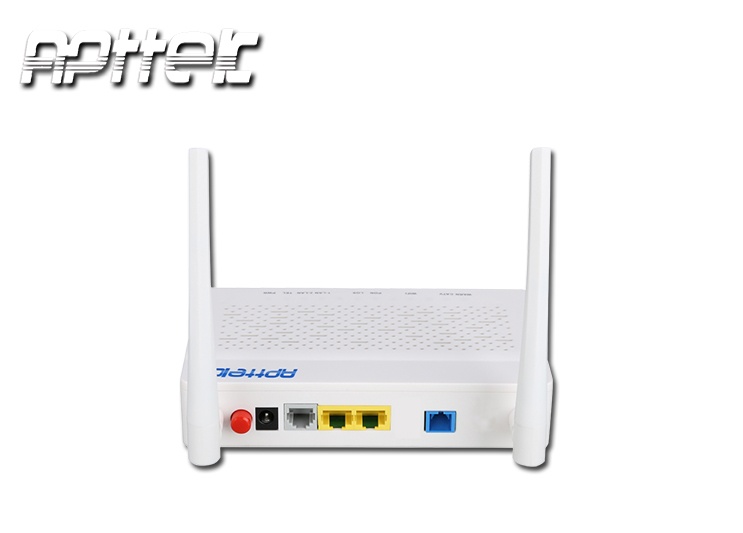

1GE 1FE WiFi Modem with Voice GPON ONT

Characteristics
1. Realtek Chipset based
2. 5dBi 2.4ghz WIFI

3. VOIP supports SIP protocol

4. Compatible with Huawei, ZTE, and other OLTs made in China.

5. One power input interface

6. One on/off button.

Features

1. Comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol
2. Support bidirectional FEC and RS(255,239) FEC CODEC

3. Support 32 TCONT and 256 GEMPORT

4. Support AES128 decryption function of G.984 standard

5. Support SBA and DBA dynamically broadband allocation

6. Support the PLOAM function of G.984 standard

7. Support dying-gasp check and report

8. Support synchronous Ethernet

9. Support the rogue ONU alarm function

10. Support multiple VLAN function

11. Operation mode: SFU or HGU option

12. Support TR069, NAT, DMZ, DNS features

13. Support IPV, PPPOE, DHCP, and Static IP configuration for WAN interface

14. Support IP, MAC Filtering, Firewall functionality in routed mode

15. Good interworking with the OLT from different manufacturers , such as Huawei, ZTE, cortina , etc.

Tech Parameters		Description
Up-link interface	PON quantity	1PC GPON PON
	PON interface receiving rate	2.488 Gbits/s
	PON interface transmitting rate	1.244 Gbits/s
	Optical power	0~4dBm
	Sensitivity	-28 dBm
	Safety	ONU authentication mechanism
Down-link interface	fiber type	single mode , single fiber, 20km max
	wavelength(nm)	TX 1310nm, RX 1490 nm
	fiber port	SC/PC, SC/UPC, SC/APC
	Ethernet port	1PC 10/100/1000M and 1PCs *10/100M with auto-negotiation
Power supply	12V 1A
Power	<= 4W
Operating temperature	-5~+55°C
Humidity	10~85% （non-condensation）
Storage temperature	-30~+70°C

technical features
WIFI	2.4G
Standard	IEEE802.11b/g/n
Frequency	2.4~2.4835GHz
Transmission speed	IEEE 802.11b :max11Mbps IEEE 802.11g: max54Mbps IEEE 802.11n:max 300Mbps
Channel number	2.4GHz :13
Data Modulation	DSSS,BPSK,CCK QPSK, and 16-QAM/64-QAM
Multiple encryption methods	WFA,WPA,WPA2,WAPI
Antenna	2T2R Mode, external antennas 5DBI Gain per pcs MIMO: 2*2
WPS function	Support

VOIP Features

* Support SIP voice protocol
* Port ringing current voltage: 50±10VAC
* Port type: RJ11
* Support G.711A-law/u-law,G729,G722 coding/decoder technology.

Packaging details:
ONU *1
Manual *1
Charger * 1

all the ONUs/ONTs and other accessories will be well packaged without any damage.
Shipping details: DHL, Fedex, UPS, TNT, Aramex, By Air/Sea, all according to the customers' requirements.
Send inquiries:
Email: apt-7990@apttek.com.cn
Whatsapp/Skype: +8618390927551

ONT Application

Optical Network Unit (ONU) / Optical Network Terminal (ONT)
ONU converts optical signals transmitted via fibers to electrical signals. These electrical signals are then sent to individual
subscribers. In general, there is a distance or other access network between ONU and end user's premises. Furthermore, ONU can send, aggregate, and groom different types of data coming from the customer and send it upstream to the OLT. Grooming is the process that optimizes and reorganizes the data stream so it would be delivered more efficiently. OLT supports bandwidth allocation that allows making smooth delivery of data float to the OLT, which usually arrives in bursts from the customer. ONU could be connected by various methods and cable types, like twisted-pair copper wire, coaxial cable, optical fiber, or through Wi-Fi.
End-user devices may also be referred to as the optical network terminal (ONT). Actually, ONT is the same as ONU in essence. ONT is an ITU-T term, whereas ONU is an IEEE term. Belong to different standard bodies, they both refer to the user side equipment in the GEPON system. But in practice, there is a little difference between ONT and ONU according to their location.
