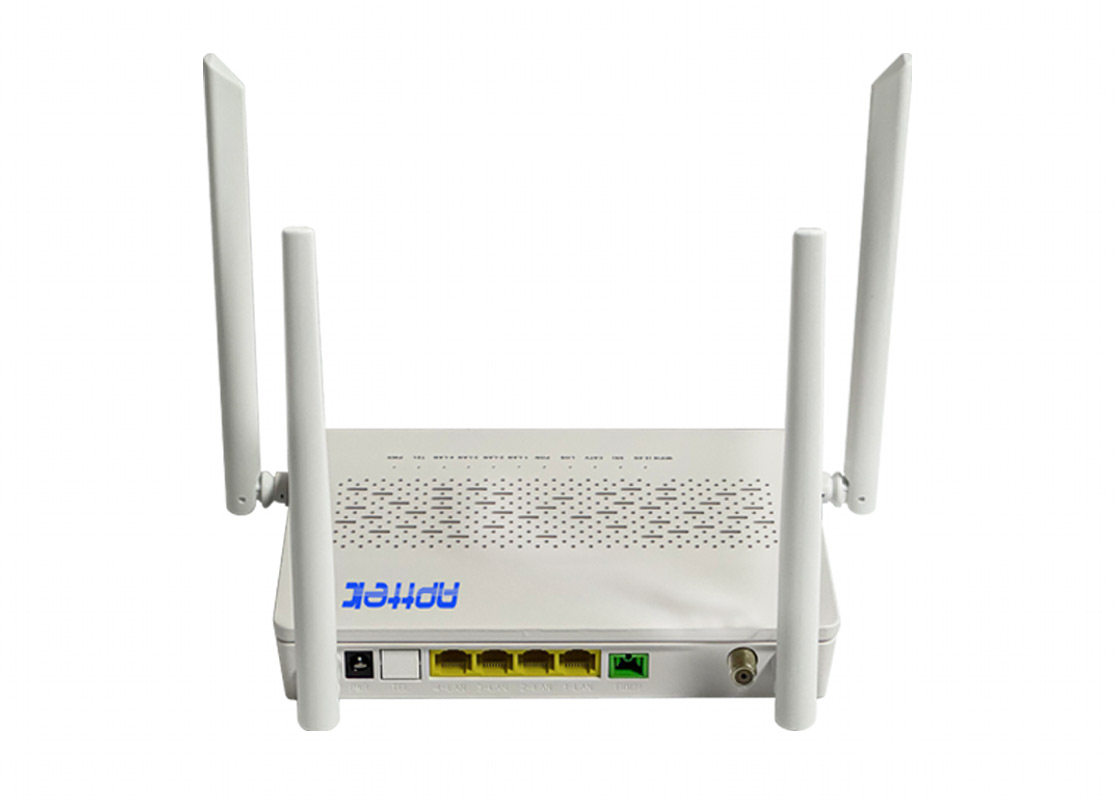

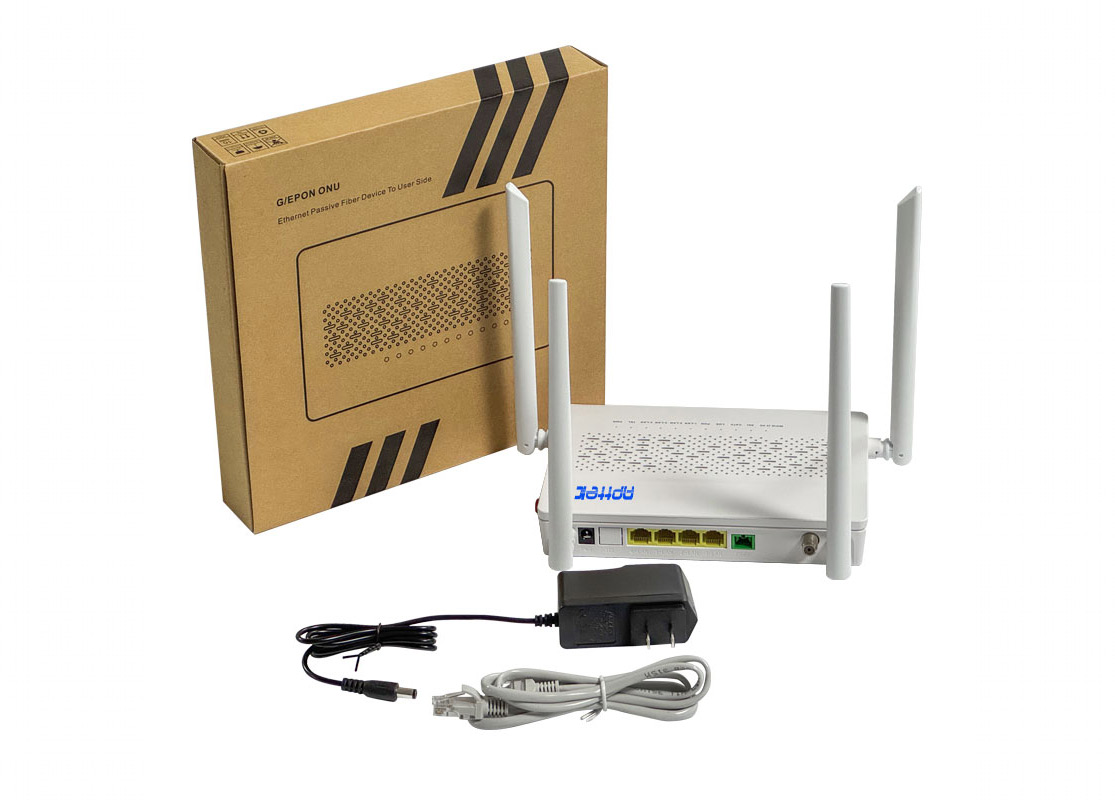

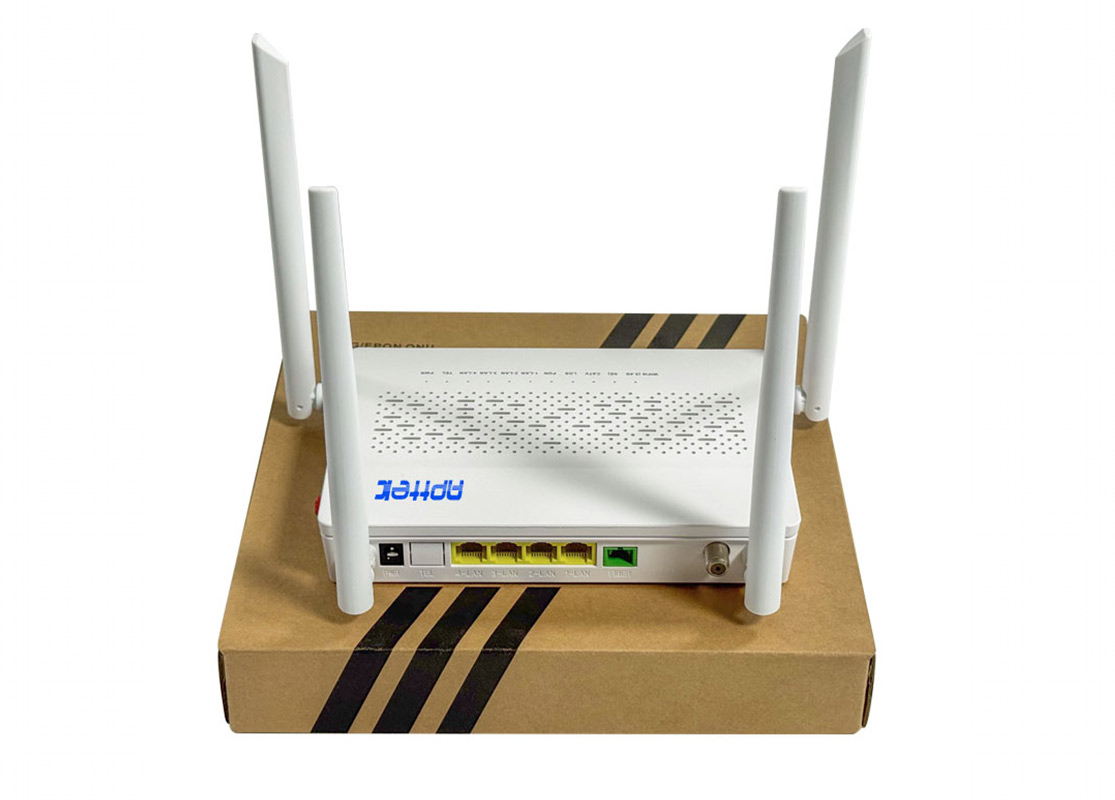

1、Product Overview

ONU product is the terminal equipment of a series of xPON which comply fully with ITU-G.984.1/2/3/4 standard and meet the energy-saving of G.987.3 protocol,ONU is based on mature and stable and high cost-effective GPON technology which adopts high-performance xPON REALTEK chipset and has high reliability， easy management，flexible configuration，robustness，good quality service guarantee(Qos).

This ONU supports IEEE802.11b/g/n/ac/ax, called WIFI6, concurrently , a WEB system provided simplifies the configuration of the WIFI and connects to INTERNET conveniently for users.

Support G/E PON automatic identification and mutual conversion function.

Product Features
△ comply fully with ITU-G.987.3 standard and OMCI full with ITU-G.988
△ support downlink 2.488 Gbits/s rate and uplink 1.244 Gbits/s rate
△ support download RS(248,216) FEC and uplink RS(248,232) FEC CODEC

△ support 32 TCONT and 127 GEMPOR

Ordering Information

ONU weight chart

Product model	Gross Weight（kg）	Net Weight(Kg)	Size			Outer carton		Product Description
			Product (MM)	Warp (MM)	Outer carton	number	Weight （kg）
AP345G4R	0.5	0.3	185*125*32	220*204*38	51*49*44	40	21.5	4LAN+2.4G&5GWIFI6 AX1800
